General Info
|
|||
| Make: | Piper | Registration Number: | N817HB |
| Model: | PA-23-250-F | Serial Number: | 27-795403 |
| Model Year: | 1979 | Engine: | TIO-540 / 250 HP |
| Location: | Trenton-Robbinsville (N87) | Gear: | Retractable (electric) |
| Props: | Constant Speed | ||
|
Summary:
|
|
Unique aircraft with huge STC’d cargo compartment, excellent maintenance history, NDH, Garmin 430W, HSI, autopilot, co-pilot instruments, built-in O2, nice paint & interior.
|
|
Logbook Time
|
|||
| Total Time: (Hours since New) | 5241 | Log books |
Complete |
| Engines: Since Major Overhaul L engine overhauled 8/91 R engine overhauled 8/91 |
L – 1482 R – 1482 |
Props: Since Major Overhaul L prop overhauled 6/01 R prop overhauled 11/95 |
L – 456 |
|
Maintenance Info
|
|||
| Annual Due: (Date) | August, 2013 | ||
| IFR Certification Due: | August, 2014 | ||
| AD’s complete? |
Yes | ||
| Type of Engine Overhaul: | Field overhaul by Firewall Forward | ||
| Damage History: | None | ||
| Other: | Hangared; recent overhaul of hydraulic powerpack (400 hrs); all bladders replaced in 2002 w/ overhauled fuel senders & gauges | ||
| Other: | Very clean w/ excellent maintenance history! | ||
|
Features
|
|||
| Huge STC’d cargo compartment | Turbo-charged | ||
| Six seats | Airwolf air/oil separators | ||
| Full co-pilot instruments | Telex six-place intercom | ||
| Full De-ice – props/boots: like-new condition, replaced 8/91 | JP Instruments EDM700 dual graphic engine monitors w/ T.I.T. | ||
| Inflatable door seal | Shadin digital fuel flow (Digiflo) | ||
| Robertson STOL kit | Built-in Oxygen | ||
| Whelen Comet flash strobes | Reiff preheat system | ||
| Dual brakes | Inertia reel shoulder harnesses | ||
| Electric elevator trim | |||
|

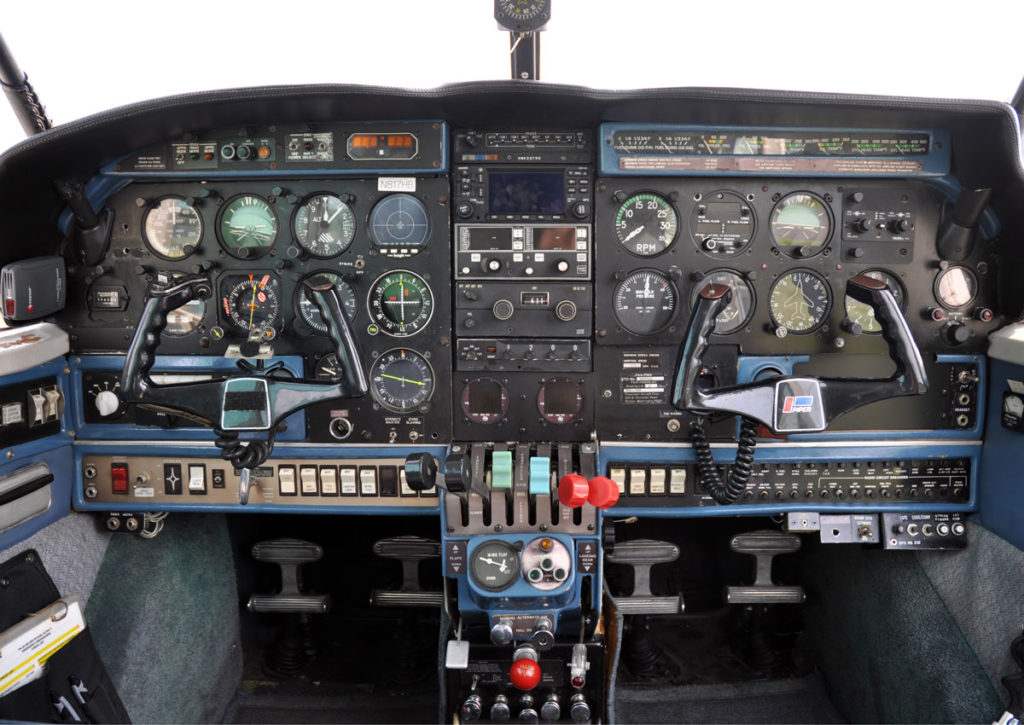

Avionics
|
|
| Make / Model | |
| NAV/COM #1: | Garmin GNS 430W |
| NAV/COM #2: | MAC 1700 w/ Glideslope |
| HSI: |
Century NSD 360a slaved |
| Autopilot: | Piper Altimatic III C w/ auto-trim tied to GPS |
| Transponder: | King KT76A |
| ADF: |
King KR85 |
| Audio Panel: | King KMA20 |
| Stormscope: | Insight Strike Finder |
| Compass: | Precision vertical card |
| Clock/Timer: |
Davtron digital clock/counter/timer |
| Co-Pilot Instruments: | Yes |
| Avionics Master: | Yes |
|

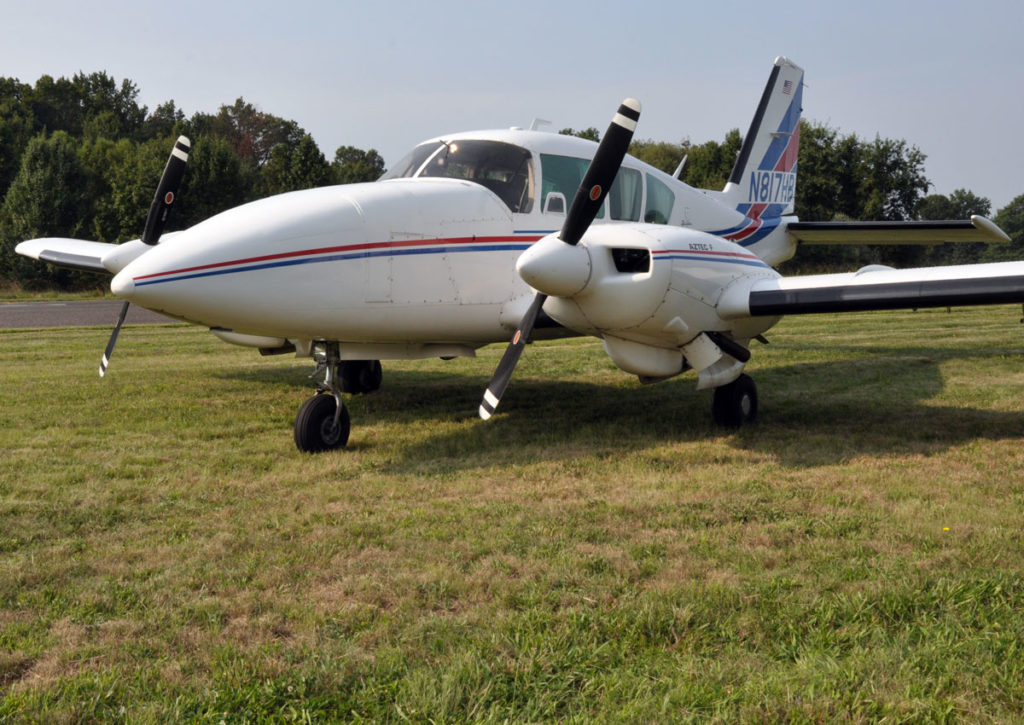

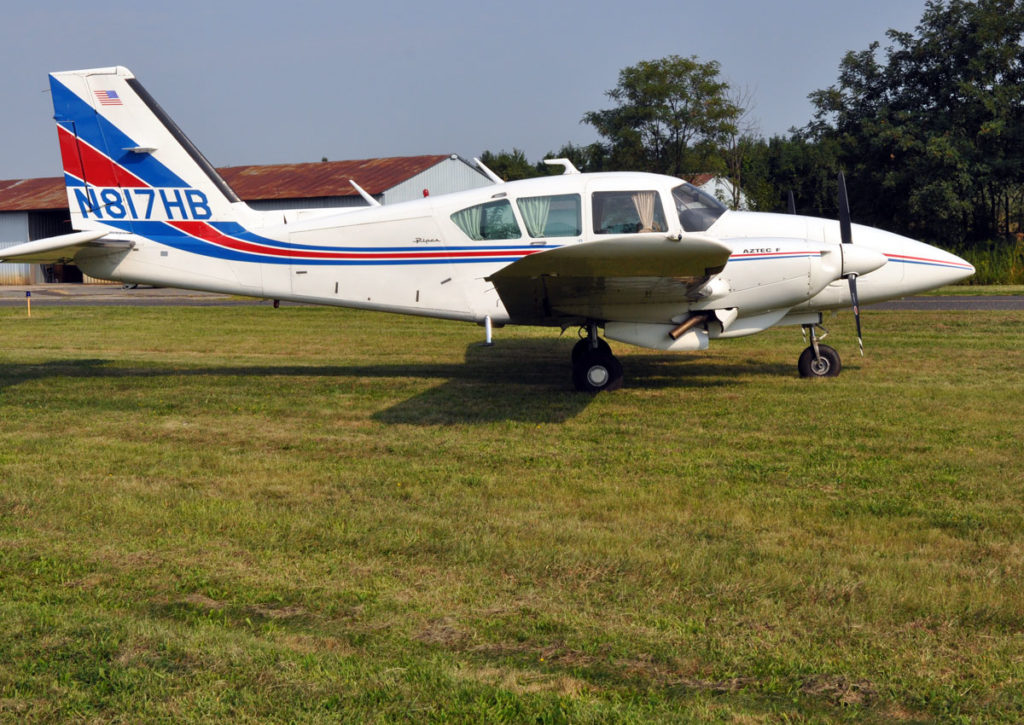

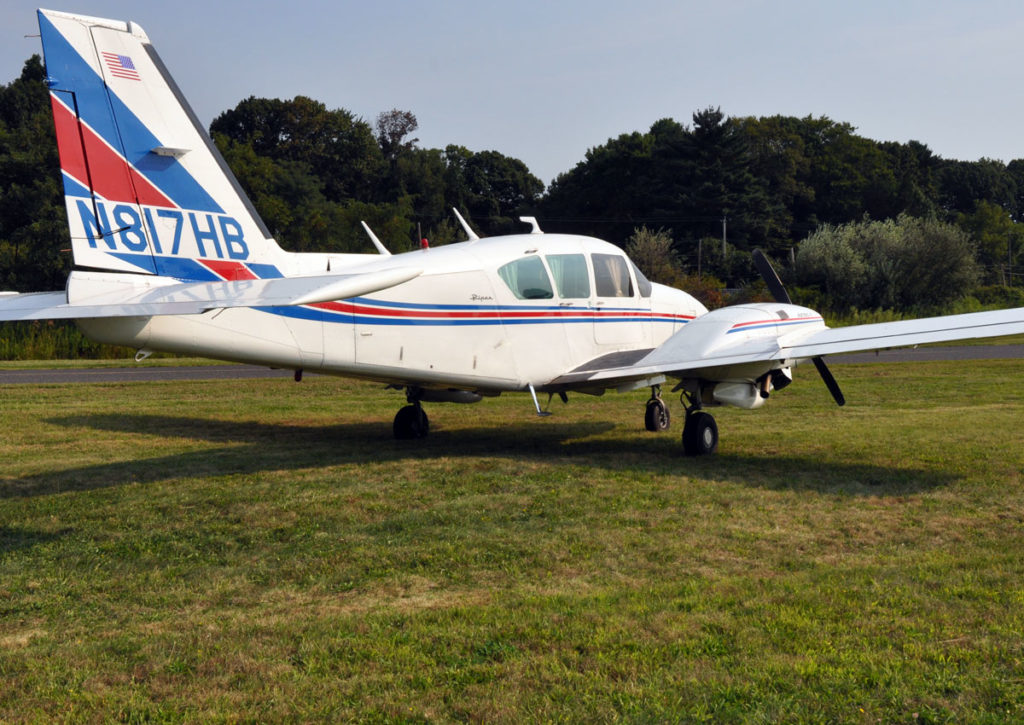

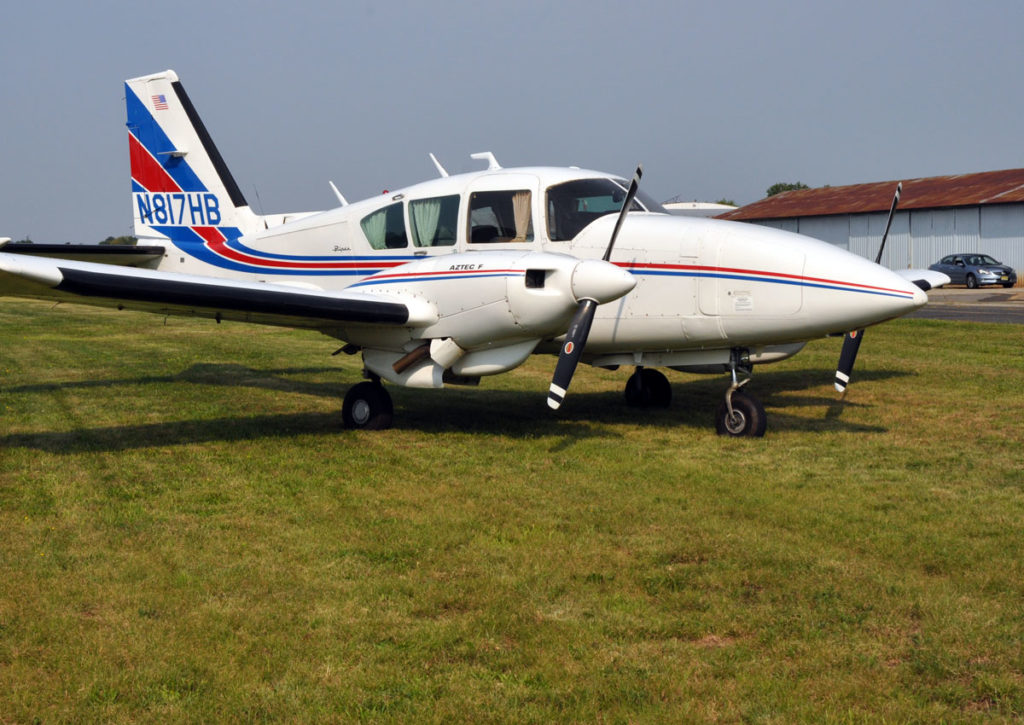

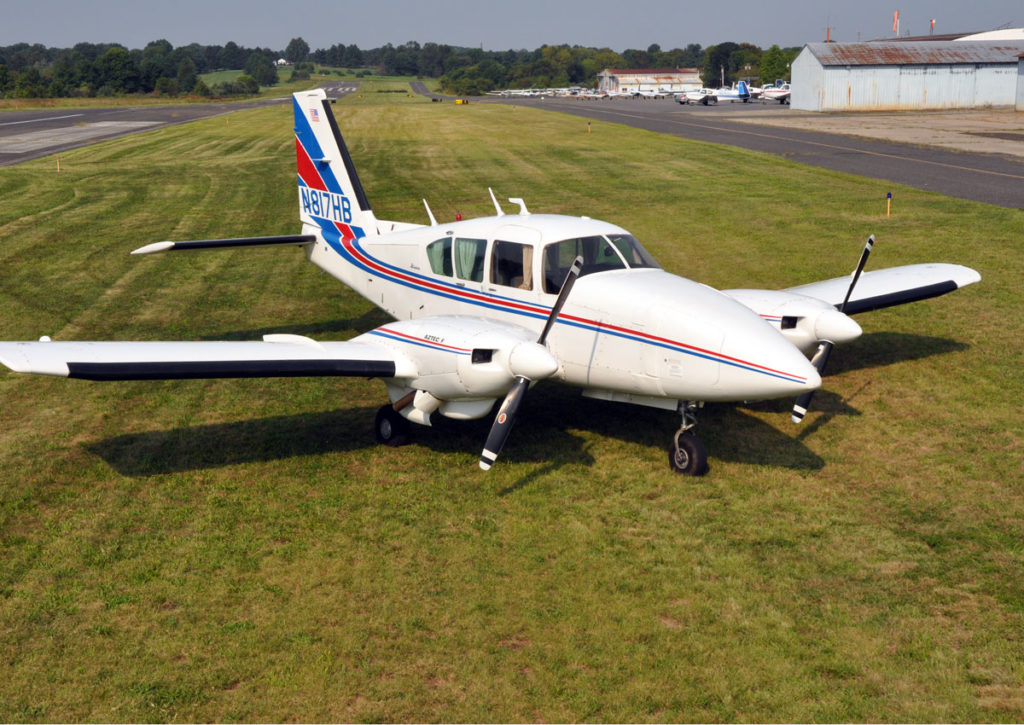

Exterior
|
|
| Color(s): | White with blue and red trim |
| Paint Condition: (1 to 10, 10 being the highest) |
8 (painted 8/91) |
|

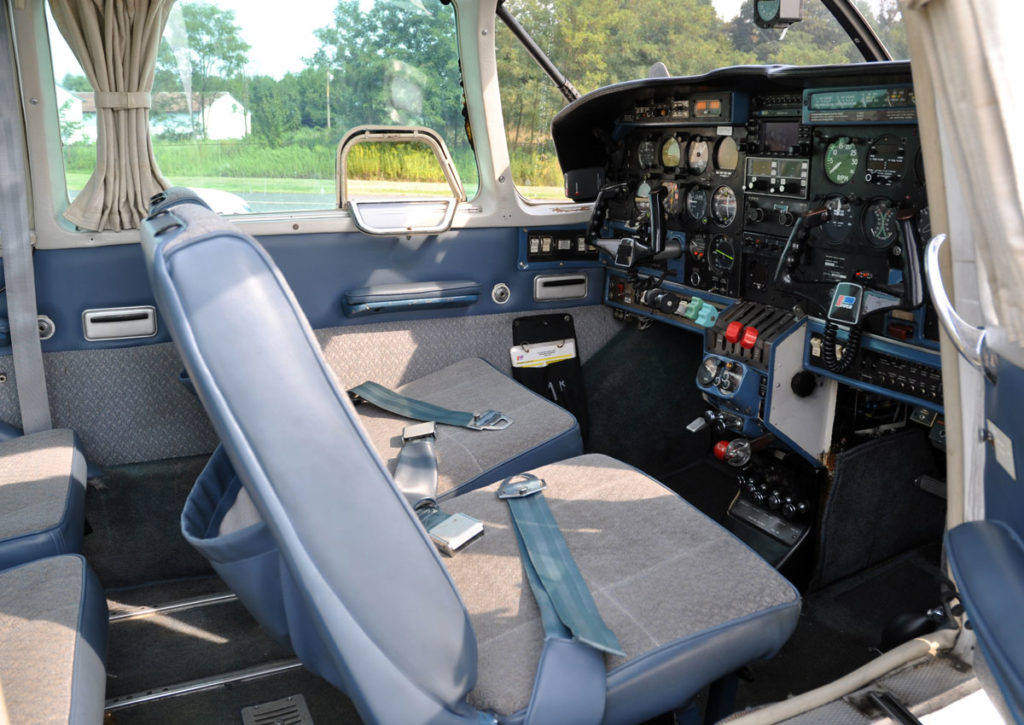

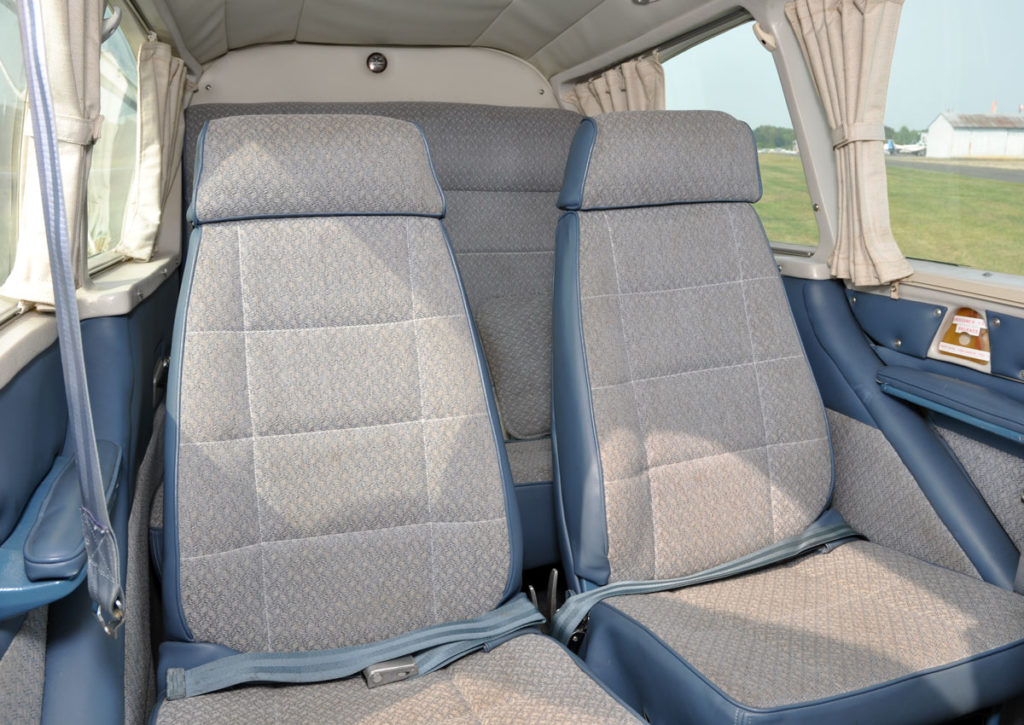

Interior
|
|
| Color(s): | Blue |
| Fabric: | Cloth/Vinyl |
| Condition: (1 to 10, 10 being the highest) |
8 |
| Glass condition: | |
| Other: | |
|
Performance
|
|||
| Cruise Speed: | 175 -185 kts (true btw 9000 – 12000 feet) | ||
| Useful Load: (remaining after full fuel) | 1008 lbs (1872 without fuel) | ||
| Fuel Capacity: | 177 gal | ||
| Fuel burn: (average) | 28 – 32 GPH * | ||
| Range (IFR): | 825 nm * | ||
| Specific Range: ((Efficiency = Cruise Speed ÷ Lbs per hour of fuel burn) (The higher the number, the better the efficiency)) | 1.09 | ||
| * Note: Performance figures are estimates based on best available information and may vary depending on power settings, etc.. | |||
|
Comments
|

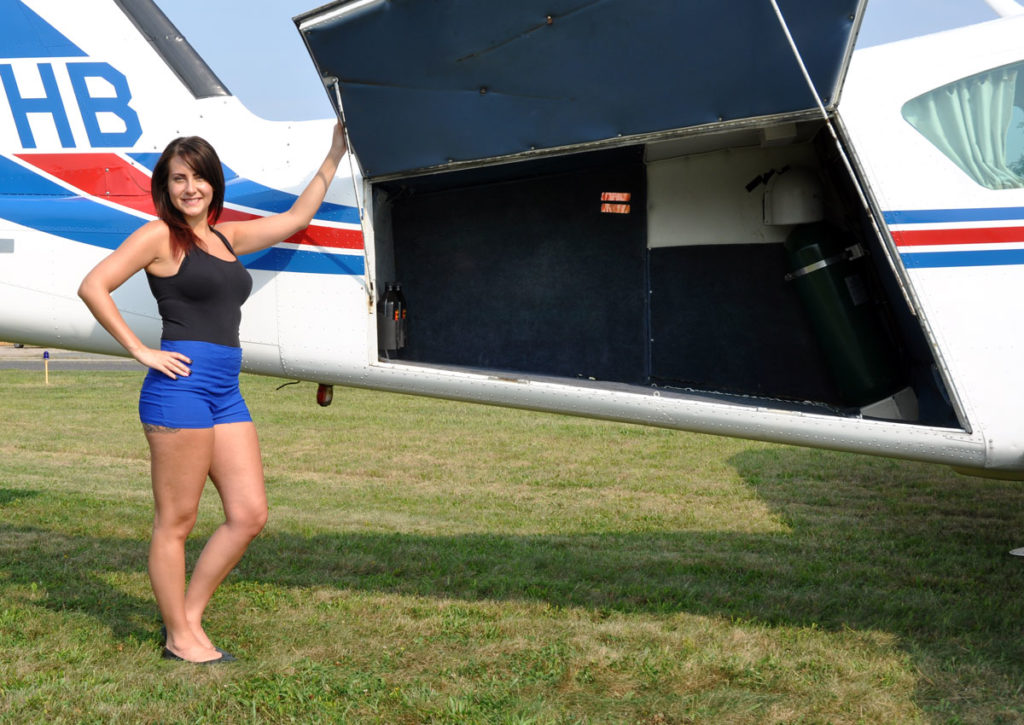

| The huge STC’d cargo compartment sets this Aztec apart from the others! It is carpeted and includes cargo tie-downs. While certainly not approved for passengers, for size reference, Jessica is 5’6" and fits nicely…don’t you think?
This airplane is in excellent condition! It has been hangared and has an excellent maintenance history. With turbo-charging, full de-ice, a Garmin GNS 430W, stormscope, and co-pilot instruments, this airplane is well equipped and ready for your next mission! Background: The Aztec evolved in the late 1950’s as Piper wanted more out is twin-engine Apache. Following the addition of several upgrades, it officially went on the market in 1959 effectively ending the Apache’s run. The earlier Aztecs featured the twin 250s, seating for six, and several other advances. The model was tweaked through the years and saw a rather long run until production ceased in 1982. The "F" model included improved systems and cambered wingtips and tailplane tip extensions. Beyond its upgraded design, the Piper Aztec has several claims to fame that make it a popular model. It is noted for its endurance, stability, and load-carrying ability. You really do need to see this airplane and see for yourself what you might fit in the cargo compartment! |
|
