General Info
|
|||
| Make: | Mooney | Registration Number: | N1172K |
| Model: | M20K (231) | Serial Number: | 25-0713 |
| Model Year: | 1982 | Engine: | TSI0-360-LB (210 HP) |
| Location: | Trenton-Robbinsville (N87) | Gear: | Retractable (electric) |
| Prop: | Constant Speed | ||
|
Summary Info
|
|||
| Extensively equipped, very low time, excellent condition, & fast! GNS 530W, LB engine upgrade, weather, traffic, flight director, & much more! |
|
Logbook Time
|
|||
| Total Time: (Hours since New) | 1419 | Log books |
Complete (impeccable) |
| Engine: (Since Major Overhaul – LB Conversion) | 514 | Prop: (Since Major Overhaul) | 514 hrs |
|
Maintenance Info
|
|||
| Annual due: (Date) | November, 2011 | ||
| IFR Certification Due: | |||
| AD’s complete? (Yes / No) | Yes | ||
| Type of Engine Overhaul: | Teledyne Mattituck; LB conversion w/ new cylinders | ||
| Damage History: |
No damage history | ||
| Hangared: | Yes – always since new | ||
| Other: | Mooney Service Center maintained entire life; oil analysis; new battery | ||
|
Features
|
|||
| Articulating pilot/co-pilot seats | Q-tip prop w/ electric anti-ice | ||
| Split removable rear seats | Fiberglass one-piece belly pan | ||
| Custom head rests | Gami fuel injectors | ||
| Bose Aviation X headsets (2) | Complete Tanis pre-heat system | ||
| Speed brakes | Low profile gear doors, overlapping nose gear doors | ||
| Monroy long-range fuel tanks (106 gals) | Gap seals, internal antennas | ||
| Built-in 4-place oxygen | Super sound proofing | ||
| 80 Amp alternator; stand-by generator | Power tow | ||
| External power plug | |||
|

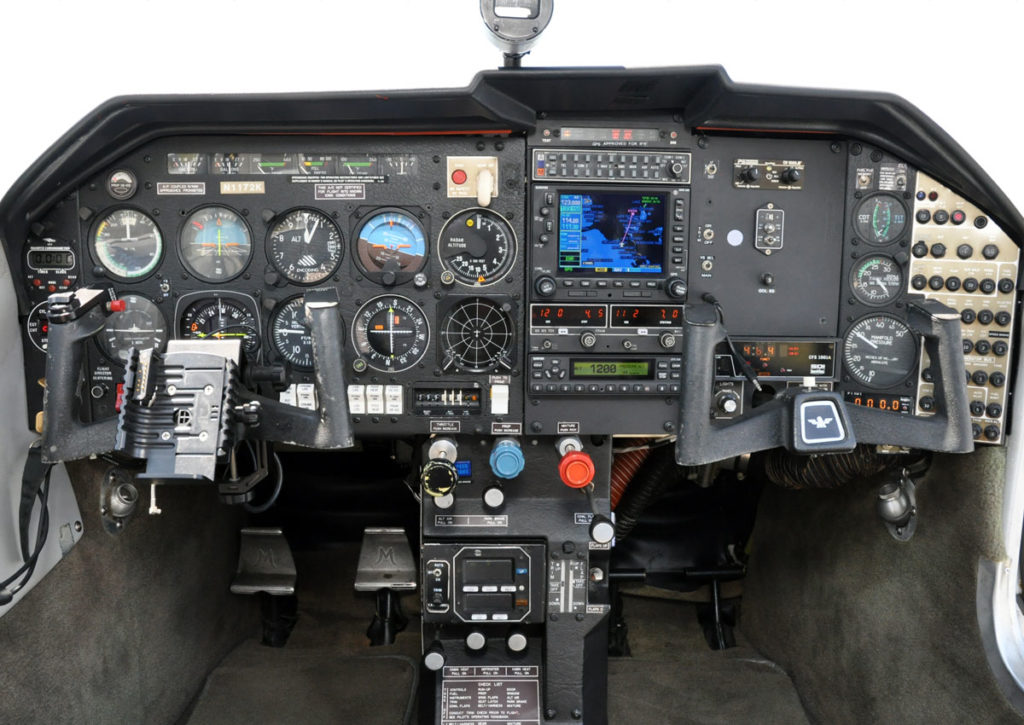

Avionics
|
|
| Make / Model | |
| NAV/COM #1: | Garmin 530W |
| NAV/COM #2: | King KY 197E w/ glideslope |
| HSI: |
King KCS-55A |
| Transponder: | Garmin GTX 330 w/ traffic |
| Electric Standby Attitude Indicator | Yes |
| Radar Altimeter: | King KRA 10 |
| Weather: |
Garmin GDL 69A |
| Weather: | BF Goodrich WX10A Stormscope |
| Autopilot: | S-TEC 60 w/ Altitude Pre-Select, Yaw Damper, & Flight Director (fully coupled) |
| Audio Panel: | King KMA 24 with 3-Light Marker Beacon |
| Intercom: | PS Engineering PM1000 II w/ music input |
| Engine Monitoring: | JPI graphic engine monitor |
| Fuel Flow and Totalizer: | Shadin and Hoskin |
|
Exterior
|
|
| Color(s): | Light Gray w/ dark gray & black trim |
| Paint Condition: (1 to 10, 10 being the highest) |
7 |
|

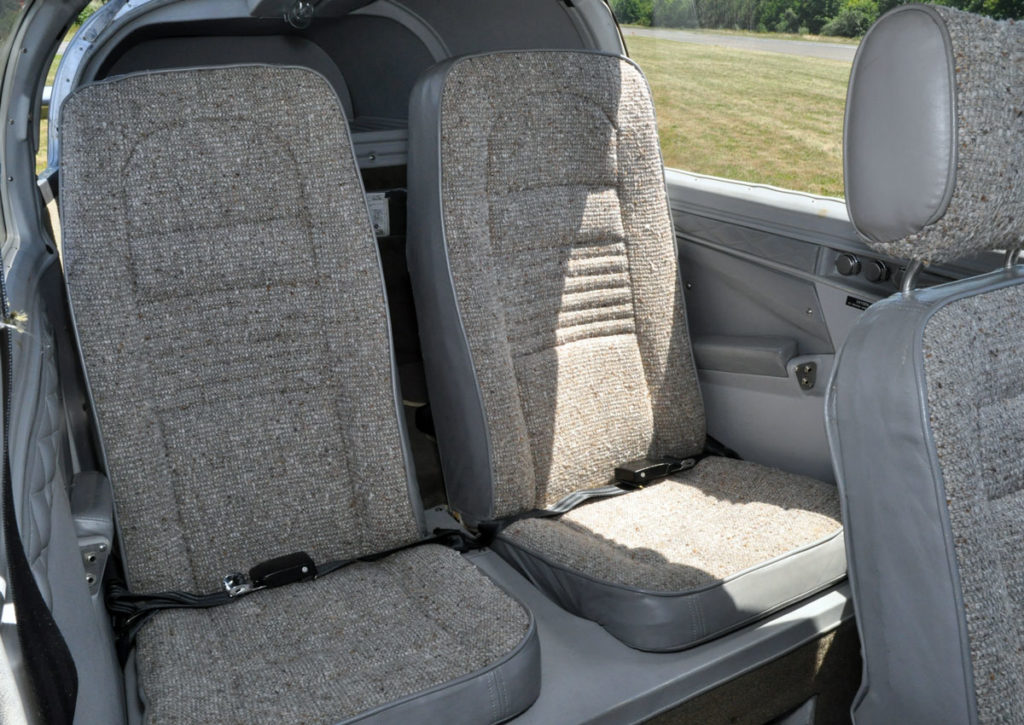

Interior
|
|
| Color(s): | Gray |
| Fabric: | Leather/wool fabric |
| Condition: (1 to 10, 10 being the highest) |
8 |
| Glass condition: | Excellent -1/4″ gray tint |
| Other: | |
|
Performance
|
|||
| Cruise Speed: (at 75% power) | 180 kts * | ||
| Useful Load: (remaining after full fuel) | 460 lbs * | ||
| Fuel Capacity: | 106 gal | ||
| Fuel burn: (average) | 13 GPH * | ||
| Range: | 1300 nm * | ||
| Specific Range: ((Efficiency = Cruise Speed ÷ Lbs per hour of fuel burn) (The higher the number, the better the efficiency)) | 2.31 | ||
| * Note: Performance figures are estimates based on best available information (from POH, Vref, etc.) and may not be exact for this particular aircraft. | |||
|
Comments
|
| Mooney drivers share a unique and deeply seated characteristic – they like to go fast! Mooneys are among the most effecient and structurally sound airplanes manufactured. The low profile cross-section and laminar flow wings reduce drag to enable the fast air speeds typically unachievable in other manufacturers’ airplanes with similar horsepower. The tubular steel frame, acting as a cockpit roll cage, along with the wingtip-to-wingtip wing spar make the Mooney airframe the strongest and safest among GA airplanes.
The M20K 231 was the first non-pressurized Turbo Mooney. Introduced in 1979, the 231 (numbered for it’s top speed) was hailed as the fastest single-engine production aircraft in the world. It was an instant success and even outsold the ever so popular Mooney 201 during the first two years of production. For the 231, the Mooney engineers capitalized on the aerodynamic airframe improvements already added to the Mooney 201 by installing an engine with a high horsepower to weight ratio – the Teledyne Continental TSIO 360 GB Engine. This combination of engine and airframe gave Mooney drivers the optimum blend of high altitude flying coupled with incredible speed and performance synonymous with Mooney Aircraft. The 231 included other improvements such as the NASA air scoop placed in the dorsal for improved cabin vintilation, new wing tips for better slow-speed control and enclosed navigation and strobe lights. This particular airplane, N1172K, has always been maintained by Mooney Service Centers sparing no expense. It was upgraded with the more reliable TSIO 360 LB engine and over $40K in speed modifications. This is truly a remarkable airplane priced very attractively. For more information for Mooney drivers, including an M20K Flight Test Report in the tab “MAPA Log Sample Articles”, click on MAPA |
|
Contact Us About This Aircraft
|
|
| Please call Dave Mathiesen at 609-259-2400 |
