General Info
|
|||
| Make: | Mooney | Registration Number: | N2154X |
| Model: | M20M Bravo | Serial Number: | 27-0243 |
| Model Year: | 1998 | Engine: | TIO-540-AF1B (Turbocharged, 270 HP) |
| Location: | Trenton-Robbinsville (N87) | Gear: | Retractable (electric) |
| Prop: | McCauley 3-Blade | ||
|
Summary Info
|
|||
| Beautiful Bravo with Garmin glass panel w/ GTN 750XI, GNC 355, G3X Touchscreen 10.6” & 7”, GFC 500, G5, GTX 345R, 35C, speed brakes, factory oxygen, and more! |
|
Logbook Time
|
|||
| Total Time: (Hours since New) | 1134 | Log books |
Complete |
| Engine: (Since New) |
1134 | Prop: (Since New) | -0- hrs |
|
Maintenance Info
|
|||
| Annual due: | August 2025 | ||
| IFR Certification Due: | August 2026 | ||
| AD’s complete? (Yes / No) | Yes | ||
| Damage History: | Resent Prop strike | ||
| Hangared: | Yes | ||
| Other: | New Prop | ||
| Other: | Recent teardown with new cam, lifters, rings, rod & main bearings, and 500-hour mag inspection | ||
|
Features
|
|||
| Speed Brakes | Electric Rudder Trim | ||
| Dual 70-Amp Alternators and Batteries | Factory Oxygen | ||
| Dual Brake Pedals | |||
|

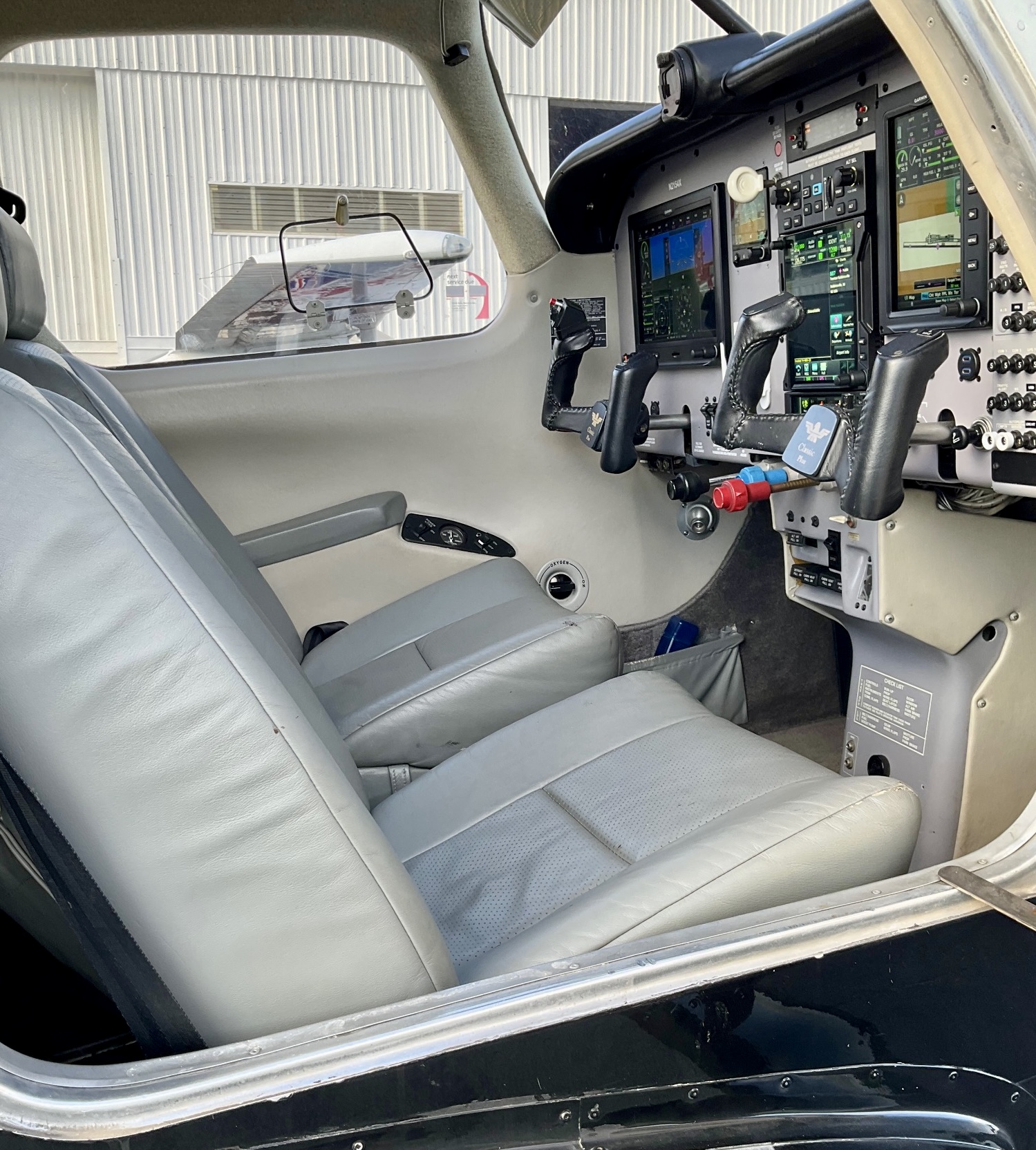

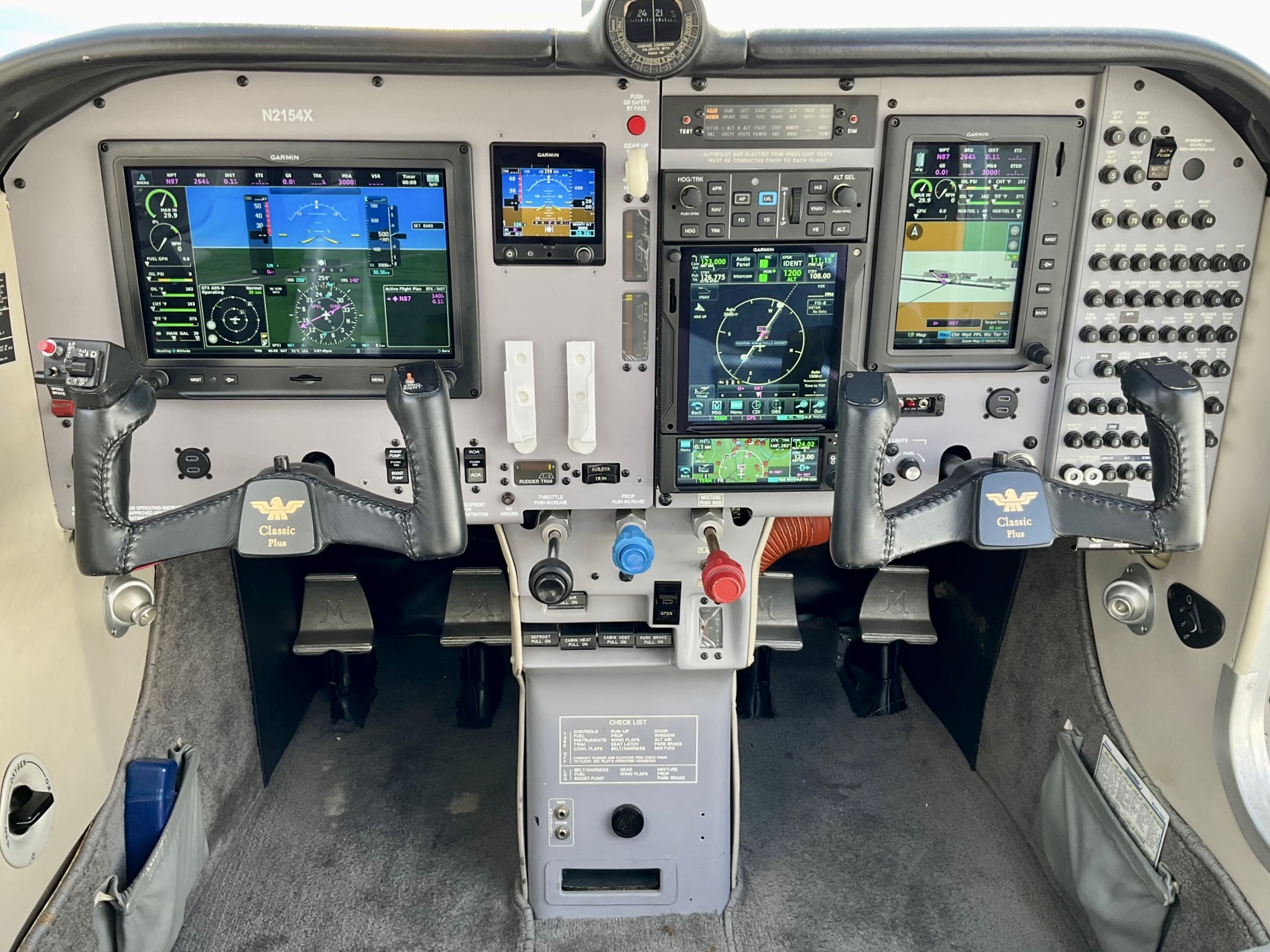

Avionics
|
|
| Make / Model | |
| GPS/NAV/COM #1: | Garmin GTN 750XI |
| GPS/NAV/COM #2: | Garmin GNC 355 |
| PFD/MFD #1: | Garmin G3X touchscreen 10.6” landscape display |
| PFD/MFD #2: | Garmin G3X touchscreen 7” vertical display |
| Standby Instrument: | Garmin G5 Attitude Indicator w/ Lightning Protection module |
| Autopilot: | Garmin GFC 500 |
| Transponder: | Garmin GTX 345R (remote w/ ADS-B in/out) |
| Audio Panel: | Garmin 35C (remote) |
| Other: | Angle of attack indicator |
|

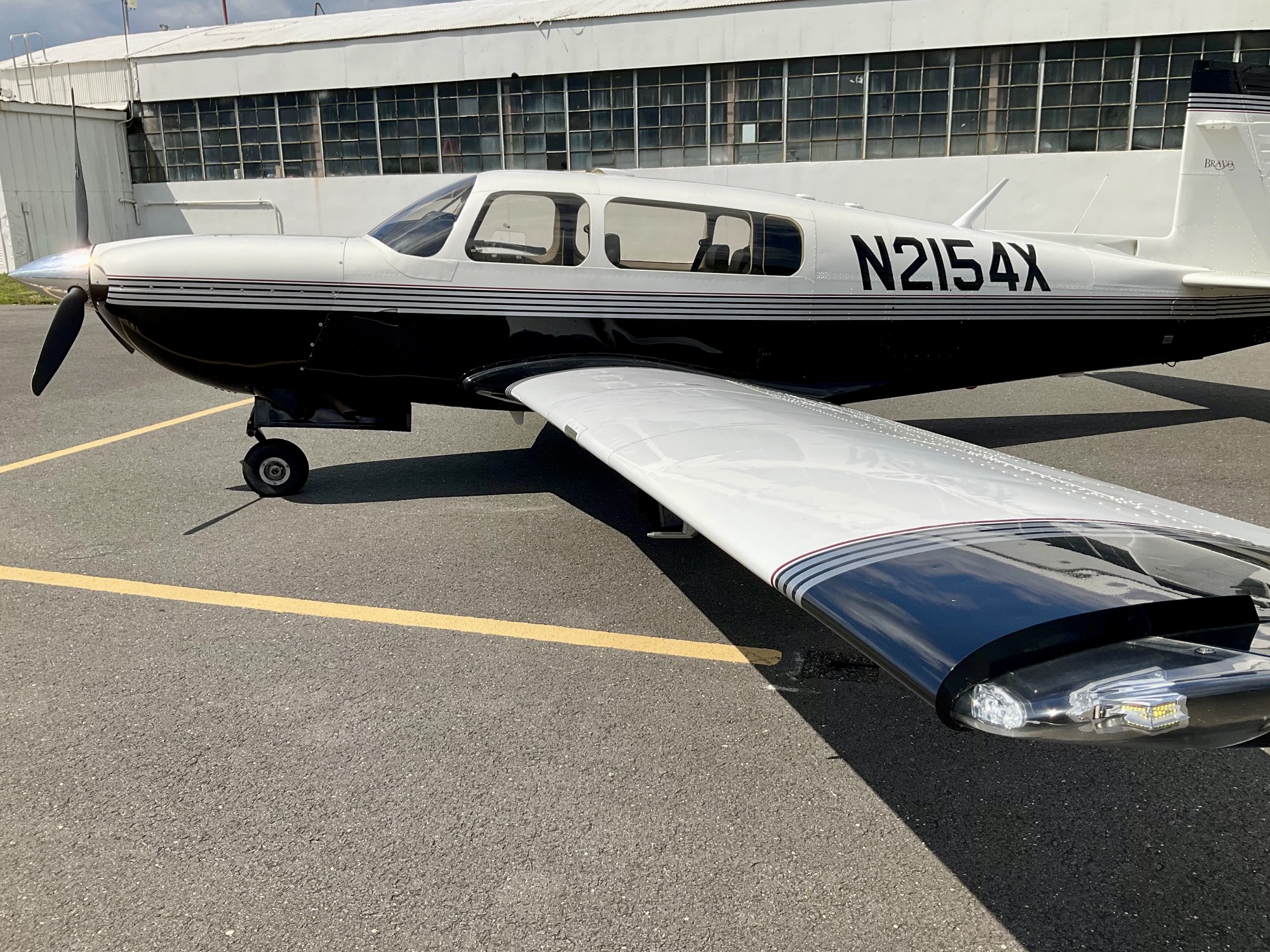

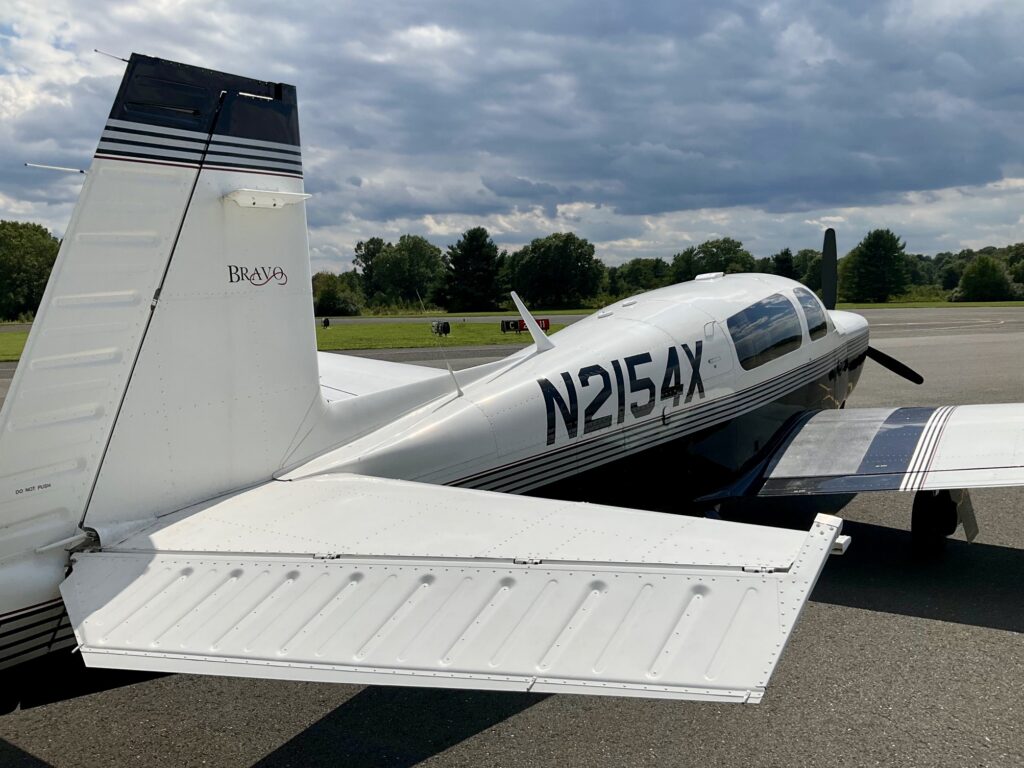

Exterior
|
|
| Color(s): | Black & White w/ Silver Trim |
| Paint Condition: (1 to 10, 10 being the highest) |
8 |
|

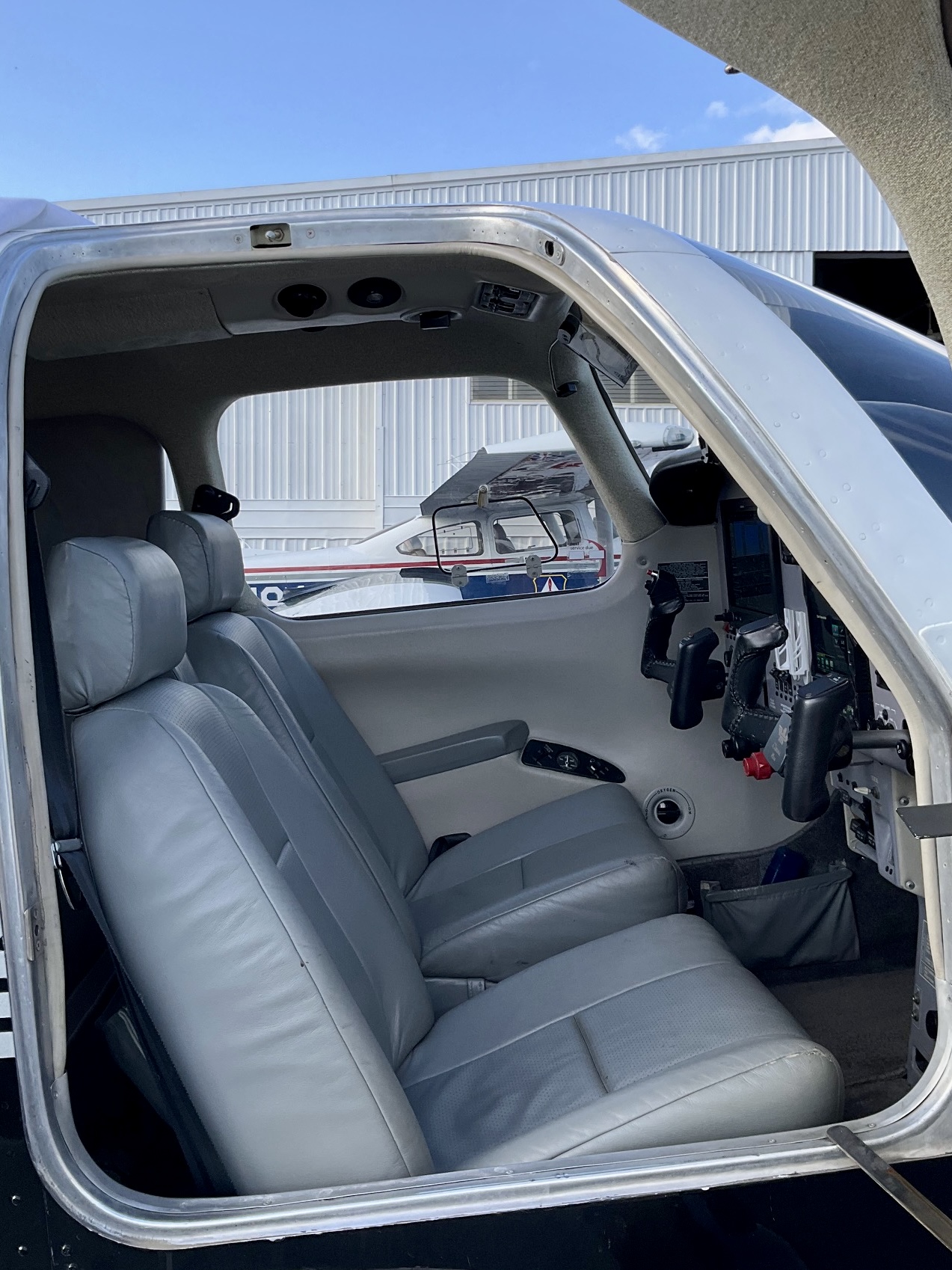

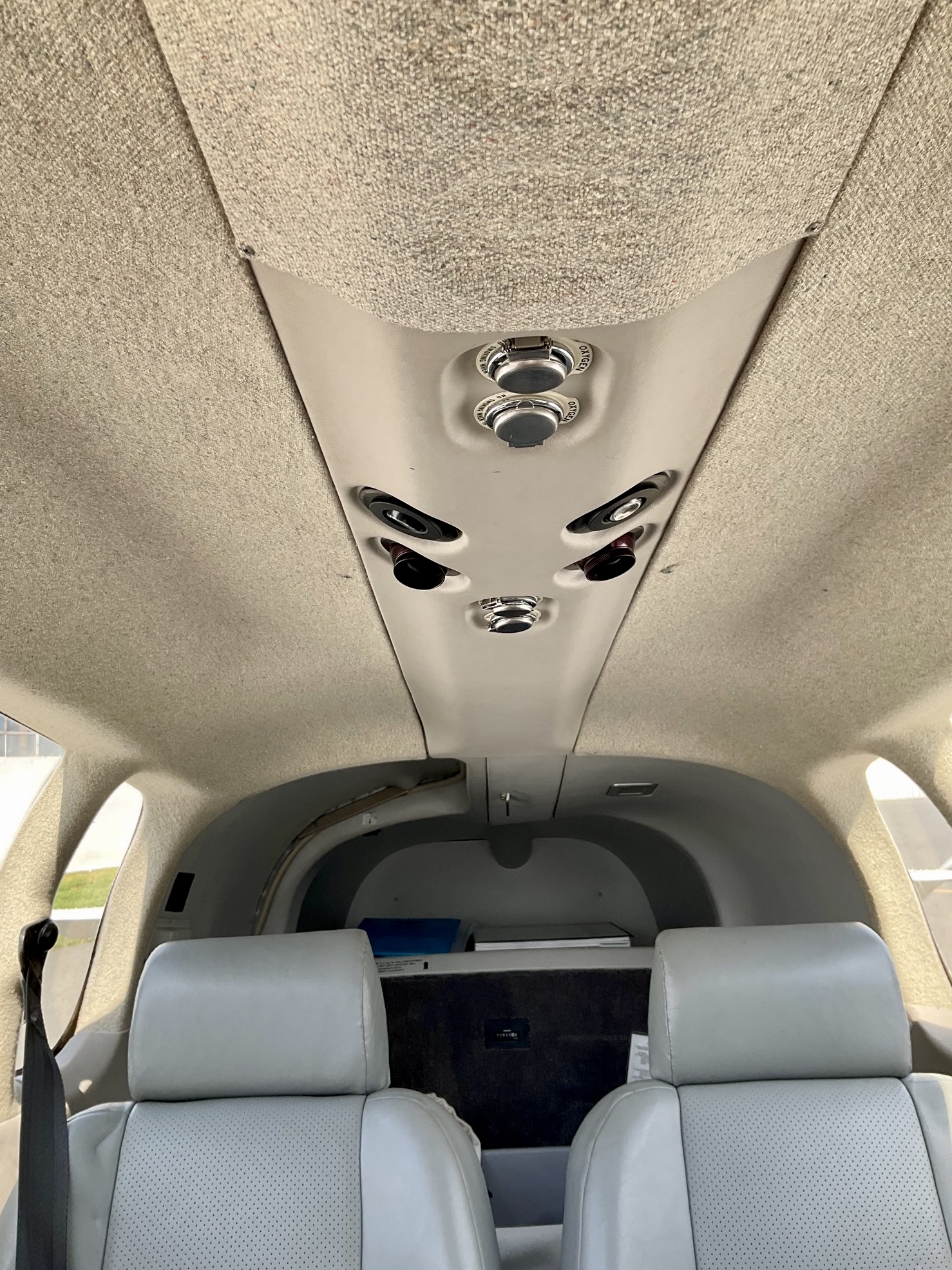

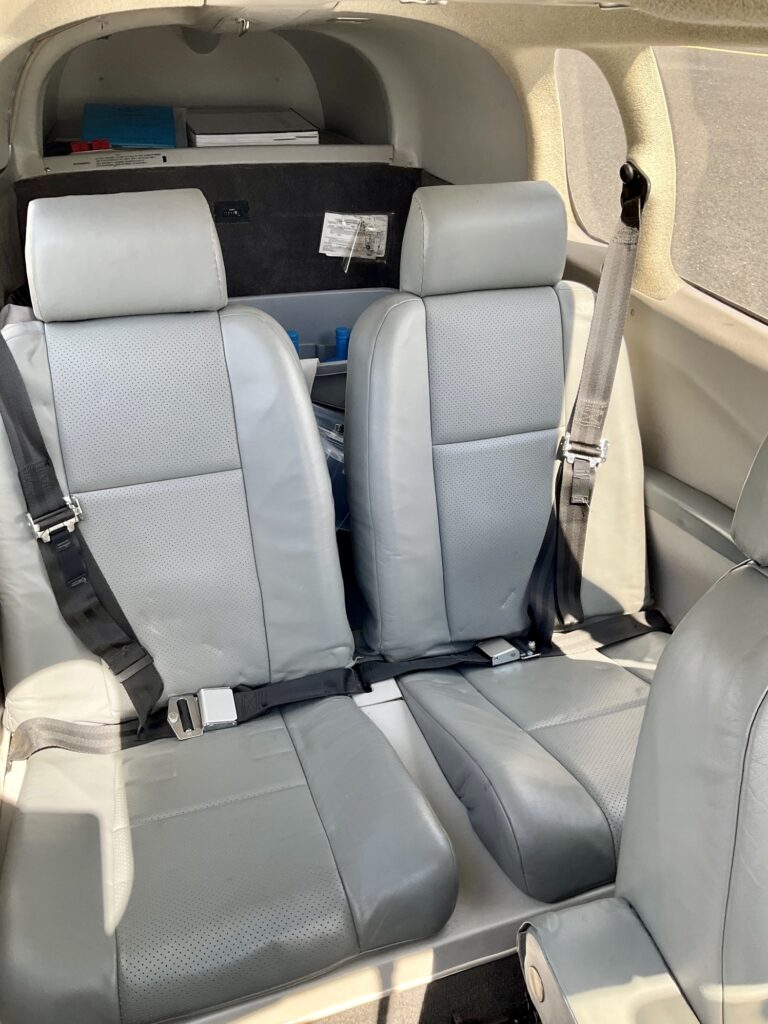

Interior
|
|
| Color(s): | Gray |
| Fabric: | Leather |
| Condition: (1 to 10, 10 being the highest) |
8 |
| Glass condition: | Excellent |
| Other: | |
|
Performance
|
|||
| Cruise Speed: (at 75% power) | 215 kts (at 25,000 ft) * | ||
| Useful Load: (remaining after full fuel) | 415 lbs * | ||
| Fuel Capacity: | 100 gal | ||
| Fuel burn: (average) | 20 GPH * | ||
| Range: | 1022 nm * | ||
| Specific Range: ((Efficiency = Cruise Speed ÷ Lbs per hour of fuel burn) (The higher the number, the better the efficiency)) | 1.79 | ||
| * Note: Performance figures are estimates based on best available information (from POH, Vref, etc.) and may not be exact for this particular aircraft. | |||
|
Comments
|
| The M20M TLS (Turbo Lycoming Sabre) is fast! Introduced in 1989, the 215-knot TLS combined the stretched fuselage of the Porsche-powered Mooney PFM with the turbocharged and intercooled Textron Lycoming TIO-540-AF1A six-cylinder engine. While the engine was capable of 350 hp, Mooney limited it to 270 hp by redlining the rpm to 2,575 to provide a quieter airplane inside and out and a longer TBO of 2000 hours.
The TLS included an improved Garrett AiResearch turbocharger, larger cowl cooling inlets, and a larger NACA duct leading to the intercooler to accommodate the larger turbo compressor. The turbocharger was automatically controlled by a density altitude controller, the magnetos were pressurized for smoother operation at altitude, and the ignition harness was shielded…all to ensure efficient operation at all altitudes. It also included two 70-amp alternators and dual batteries for further redundancy. In 1996, Mooney introduced the upgraded AF1B “Bravo” engine to address premature top-end engine wear when the engines were run hard. They solved the problem by adding a wet-head supplemental cooling system with oil-cooled exhaust-valve guides. This very low-time airplane was recently upgraded with a new Garmin glass panel. It has nice original paint (always hangared) and nice leather interior. It did encounter a recent prop strike on landing resulting in a new three-blade prop and engine tear-down. While the engine was OK, the owner replaced the cam, lifters, rings, and more. It’s priced below VRef, and conservatively based on engine hours of 1134. So coordinate a time with us when you can stop in to see it and take a ride! Did we mention that it’s fast! |
|
Contact Us About This Aircraft
|
|
| Please call Dave Mathiesen at 609-259-2400 |
