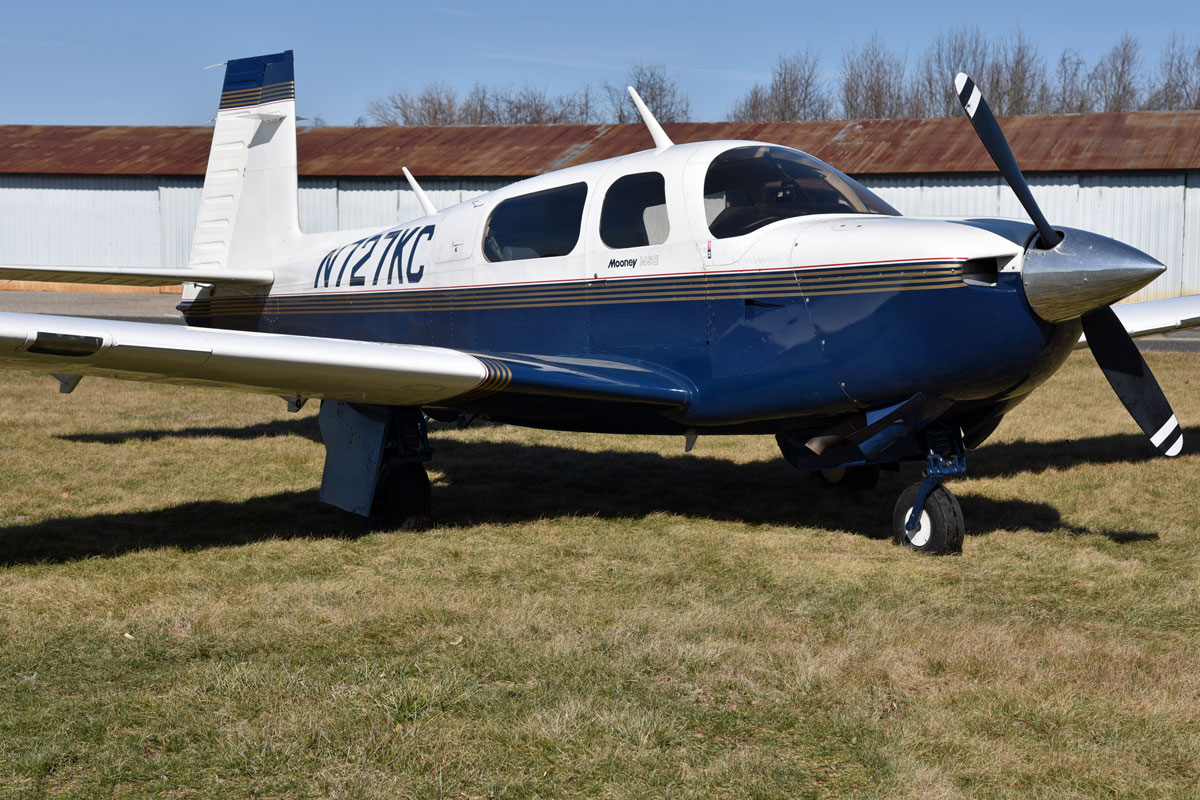

Mooney M20J (201) ’94

Published by runwayalliance on February 23, 2020February 23, 2020

N727KC_1852-b
N727KC_1853-b
N727KC_1854-b
N727KC_1845-b
N727KC_1847-b
N727KC_1834-b
N727KC_1835-b
N727KC_1859-b
N727KC_1861-b
N727KC_1860-b
N727KC_1849-b
N727KC_1864-b
‹ Previous › Next
by Dave Mathieson
$135,900
Category
Sold
Location
Trenton Robbinsville (N87)
General Info
Make: Mooney Registration Number: N727KC
Model: M20J (201) Serial Number: 24-3350
Model Year: 1994 Engine: IO360-A3B6D (200 HP)
Location: Robbinsville, NJ  (N87) Gear: Retractable (electric)
  Prop: Constant Speed
Summary Info
Nice 201 with GNS 430W, S-Tec 50, KCS-55A, GMA-340,  WX-900, JPI EDM 700, Hoskins FT-101.  Recent annual by Air-Mods, a certified Mooney Service Center,
Logbook Time
Total Time: (Hours since New)      1455 Log books
Complete
Engine: (Hrs SFRM)
     1455 Prop:  (Since Overhaul )        493
Maintenance Info
Annual Due: (Date) Feb. 2021
IFR Certification Due: Dec. 2020
AD’s complete:
Yes
Other: Recent annual by Air-Mods, a certified Mooney Service Center
Features

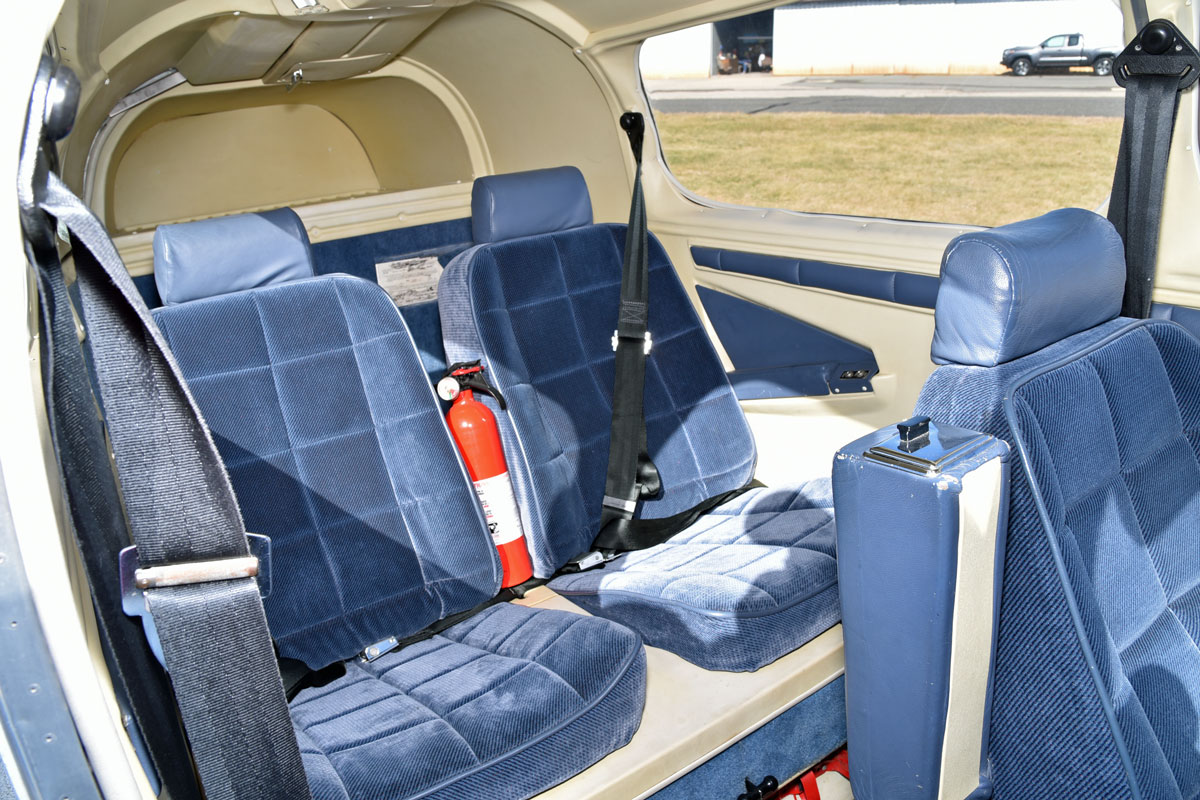

3-way articulating front seats Removable rear seats
Dual landing and taxi lights in wing leading edge Speed brakes
Wingtip strobes and recognition lights 28 volt electrical system

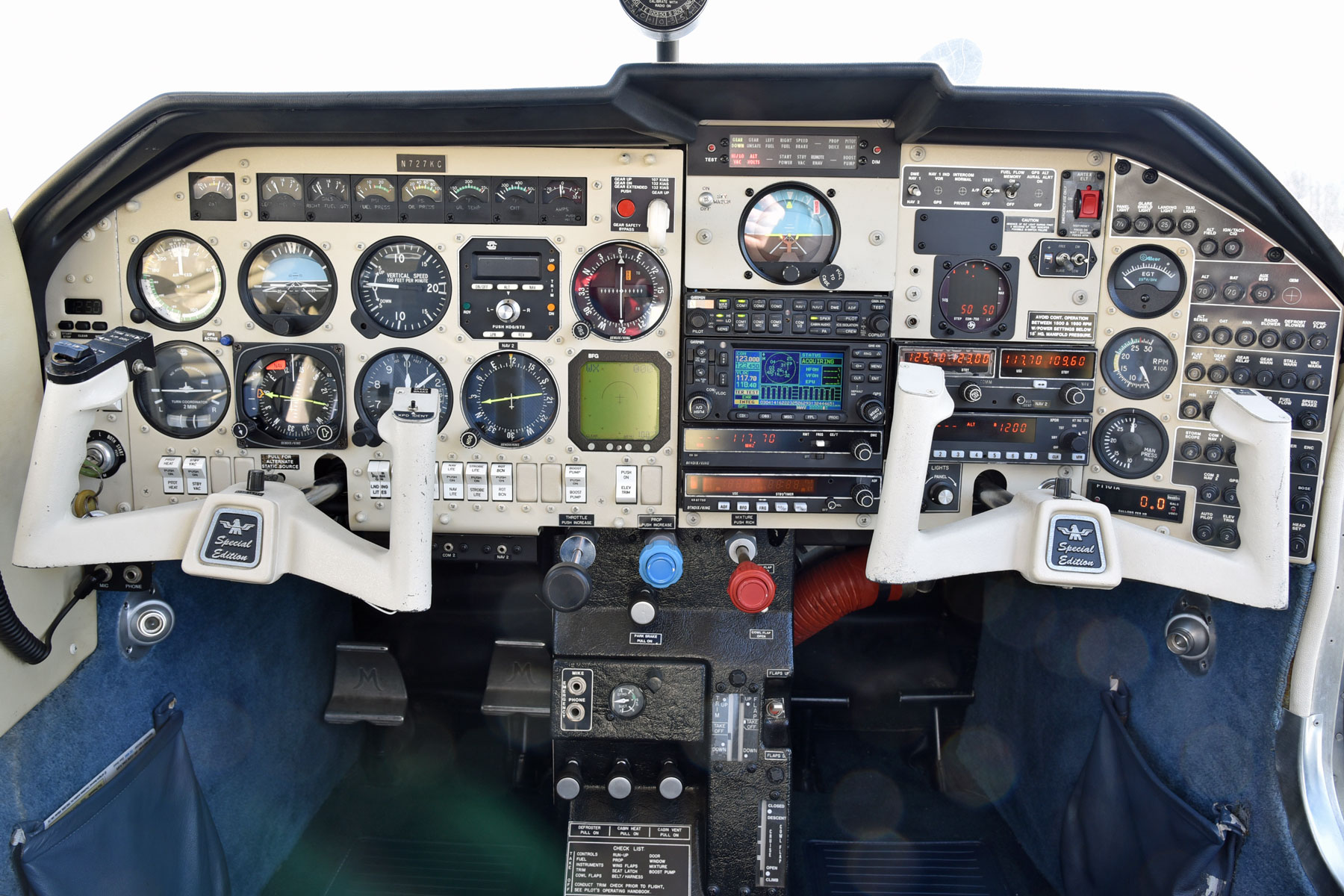

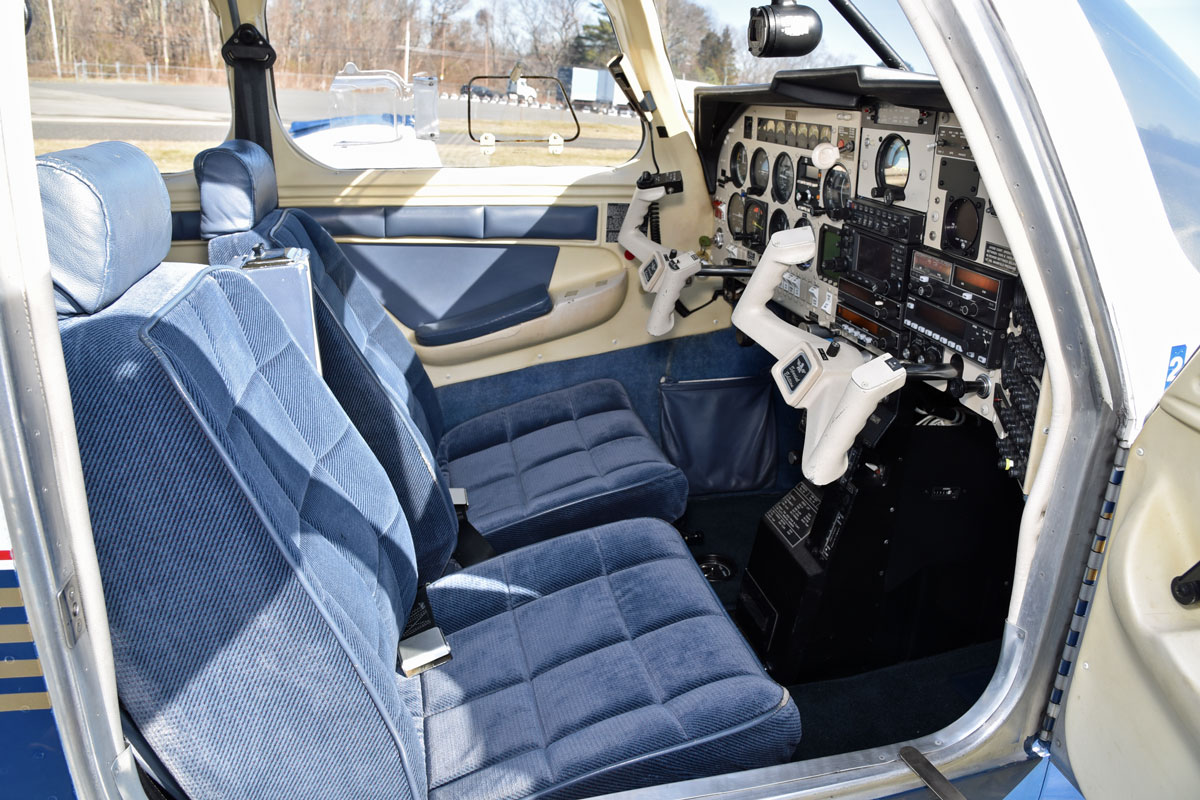

Avionics
Make / Model
Nav/Com/GPS 1: Garmin GNS 430W
Nav/Com  2: King KX 155
DME: King KN 64
ADF: King KR 87
Autopilot: S-Tec 50 w/ altitude hold
HSI: King KCS-55A
Transponder: King KT 76C
Audio Panel: Garmin GMA 340
Weather: BF Goodrich WX-900 Stormscope
Engine Monitor: JPI EDM 700
Fuel Flow/Totalizer: Hoskins FT-101
Other: Standby Electric Attitude Indicator
Exterior

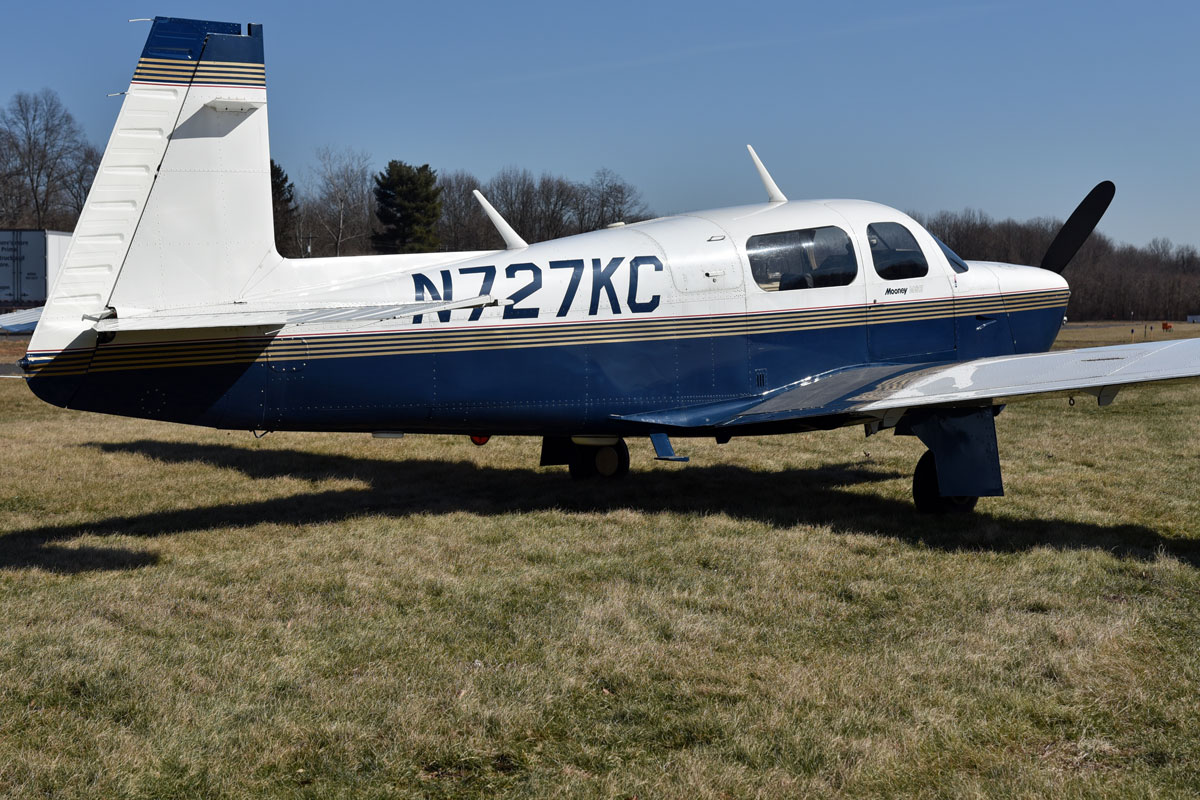

Color(s): White / Blue with Gold and Red trim
Paint Condition:
(1 to 10, 10 being the highest)
7 (base paint in very good condition; clear coat delamination in certain areas)
Interior
Color(s): Blue
Fabric: Fabric
Condition:
(1 to 10, 10 being the highest)
8
Glass: Good
Performance
Cruise Speed: (at 75% power) 160 kts *
Useful Load: (remaining after full fuel) 536 lbs *
Fuel Capacity: 64 gal
Fuel burn: (average) 10.5 GPH *
Range: 690 nm *
Specific Range: ((Efficiency = Cruise Speed ÷ Lbs per hour of fuel burn) (The higher the number, the better the efficiency)) 2.54
*Note: Performance figures are estimates based on best available information (from POH, Vref, etc.) and may not be exact for this particular aircraft.
Comments
Mooneys are among the most efficient and structurally sound airplanes manufactured.  The low profile cross-section and laminar flow wings reduce drag to enable the fast air speeds typically unachievable in other manufacturers’ airplanes with similar horsepower.  The tubular steel frame, acting as a cockpit roll cage, along with the wingtip-to-wingtip wing spar make the Mooney airframe the strongest and safest among GA airplanes.

The M20J, first introduced in July 1976 as the 1977 Model 201, included a variety of airframe enhancements engineered by Roy LoPresti that increased the top speed by 16 mph over the M20F model.  The M20J, branded the 201, since it achieve 201 mph on only a 200 hp engine, was a significant milestone in Mooney’s history.  Mooney continued improving the features and creature comforts in the “J” model.  By 1994, the improvements included lower gear doors, wheel wells, 70% smaller air intake, improved access panels, flap hinge fairings, flap gap seals, aerodynamic seals for tail assembly, ventilation thru dorsal fin air scoop, streamlined wing tips, removable rear seats, additional soundproofing, one-piece belly pan, speed brakes, round-corner windows, and electrically operated cowl flaps among other enhancements.  After 1994, features remained pretty status quo until production ceased at the end of the 1998 production year.

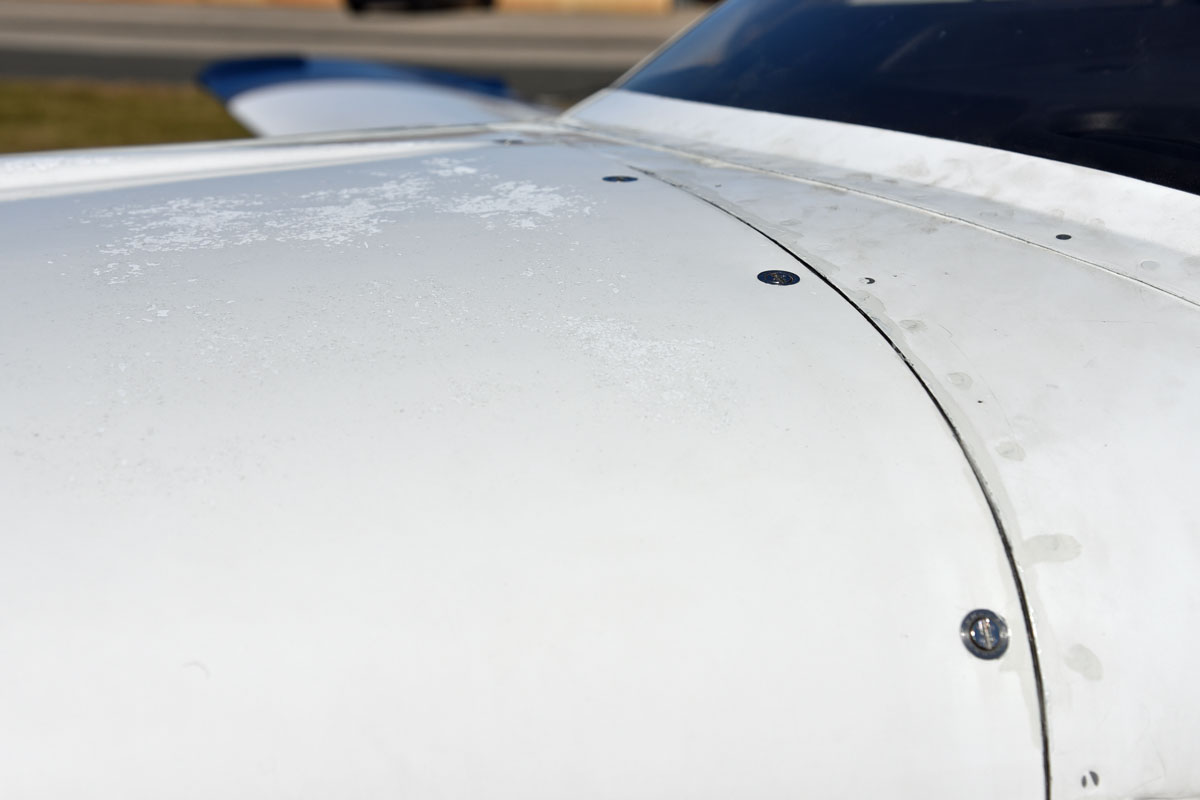

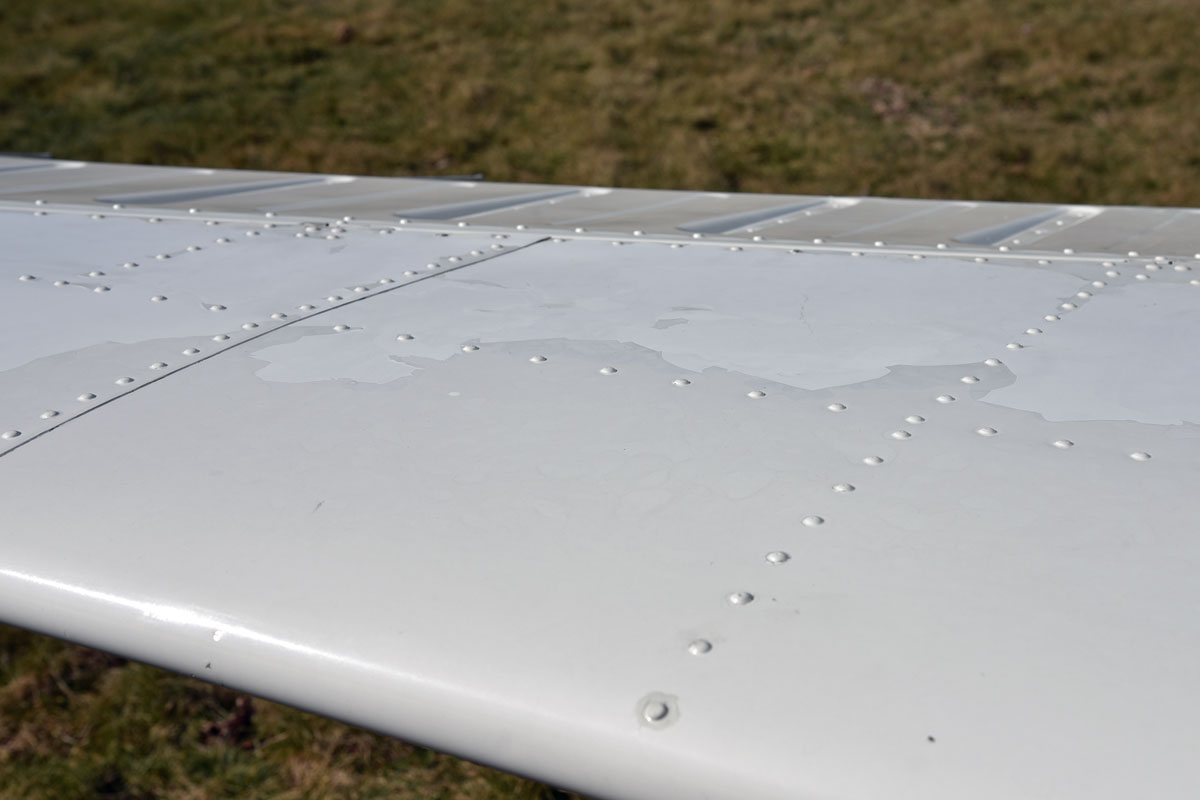

This ’94 model is a relatively low-time model with only 1455 hours on the airframe and engine.  The engine, however, received a Lycoming factory tear-down in December 2005 (due to non-motion prop strike incident with hangar door), and has flown 493 hours since.  The paint has some clear coat delaminations (see last two photos) in certain areas and the price is adjusted to allow for this and the lack of ADS-B.  Otherwise, the airplane is in great condition and ready to fly on your next cross-country flight!

Contact Us About This Aircraft
Please call Dave Mathiesen at 609-259-2400
