General Info
|
|||

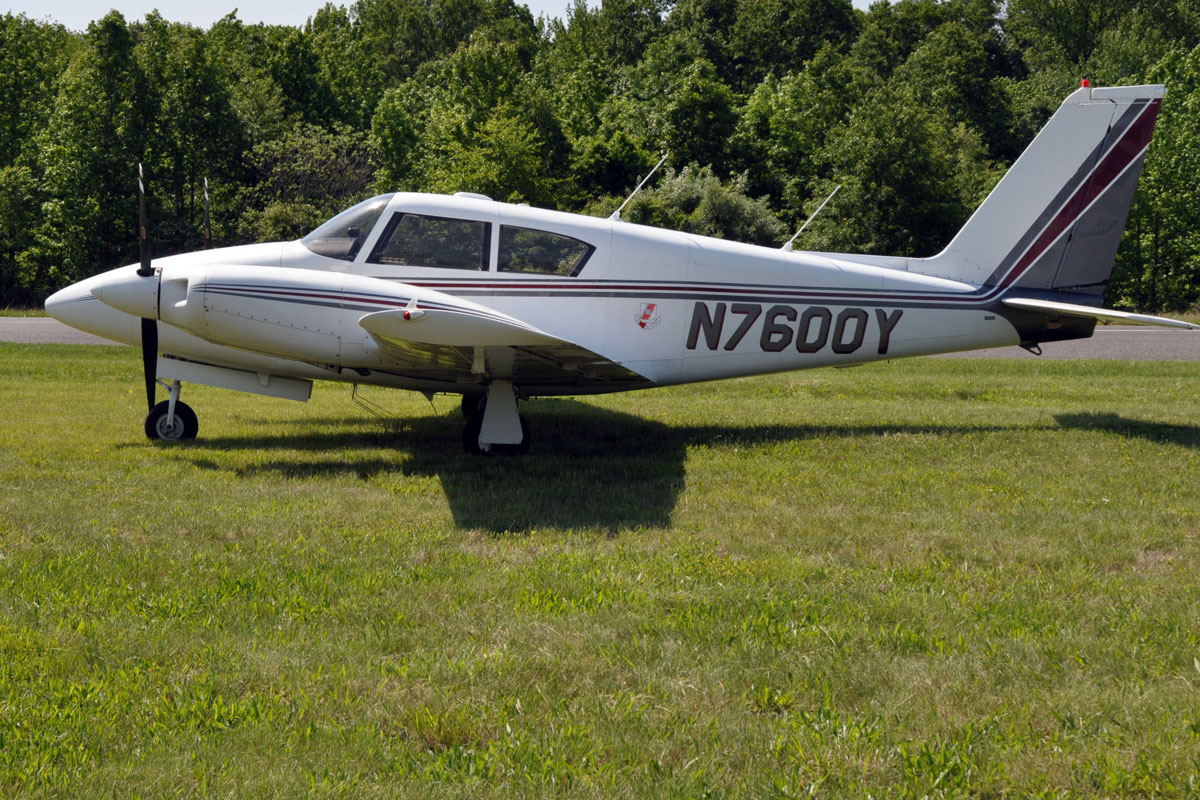

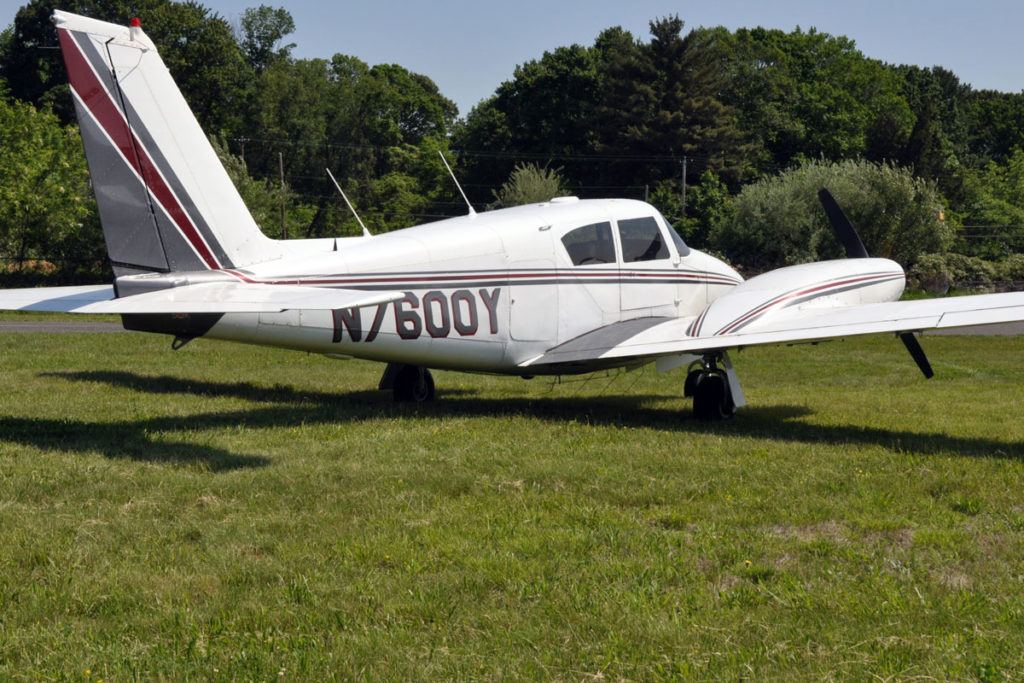

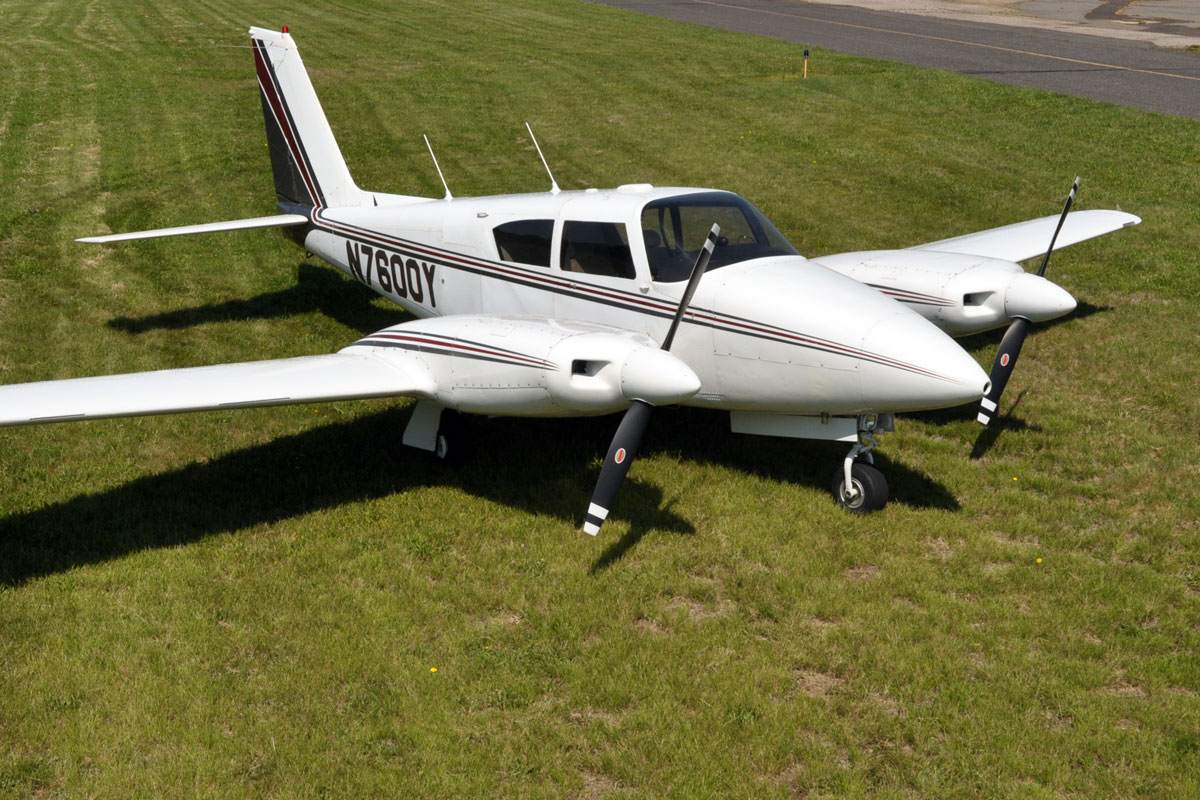

| Make: | Piper | Registration Number: | N7600Y |
| Model: | PA-30 | Serial Number: | 30-669 |
| Model Year: | 1965 | Engine: | IO-320-BlA / 160 HP |
| Location: | Trenton-Robbinsville (N87) | Gear: | Retractable (electric) |
| Props: | Constant Speed | ||
|
Logbook Time
|
|||
| Total Time: (Hours since New) | 5350 | Log books |
Complete |
| Engines: (Since Major Overhaul) | 1725 / 1735 | Props: (SMOH July, 2011) | 67 / 67 |
|
Maintenance Info
|
|||
| Annual Due: (Date) | August 2014 | ||
| IFR Certification Due: | August 2014 | ||
| AD’s complete? |
Yes | ||
| Type of Engine Overhaul: | Field Overhaul (August 1993) | ||
| Damage History: | None! | ||
| Other: | Heater replaced with C&D in 2007, both vacuum pumps replaced July 2011, 3 cylinders recently O/H on right engine; 1 cylinder recently O/H on left engine. | ||
|
Features
|
|||
| Met-Co-Aire wingtips | New landing gear retract cables | ||
| Knots 2U gear lobe fairings | Small nose wheel | ||
| Knots 2U Arapaho windshield | stainless battery box w/ copper cable | ||
| Electric elevator trim | Radio master switch | ||
| Tanis heaters | Pulselite landing light | ||
| Exhaust stack extension | Inertia reel shoulder harness | ||
| 1/4" windows | Alternator conversions | ||
| K&N air filters | High-speed starters | ||
| Late style yokes | Ashby glareshield | ||
| 4 HP EZ Tow | Modern style POH; Larry Larkin training manual | ||
|

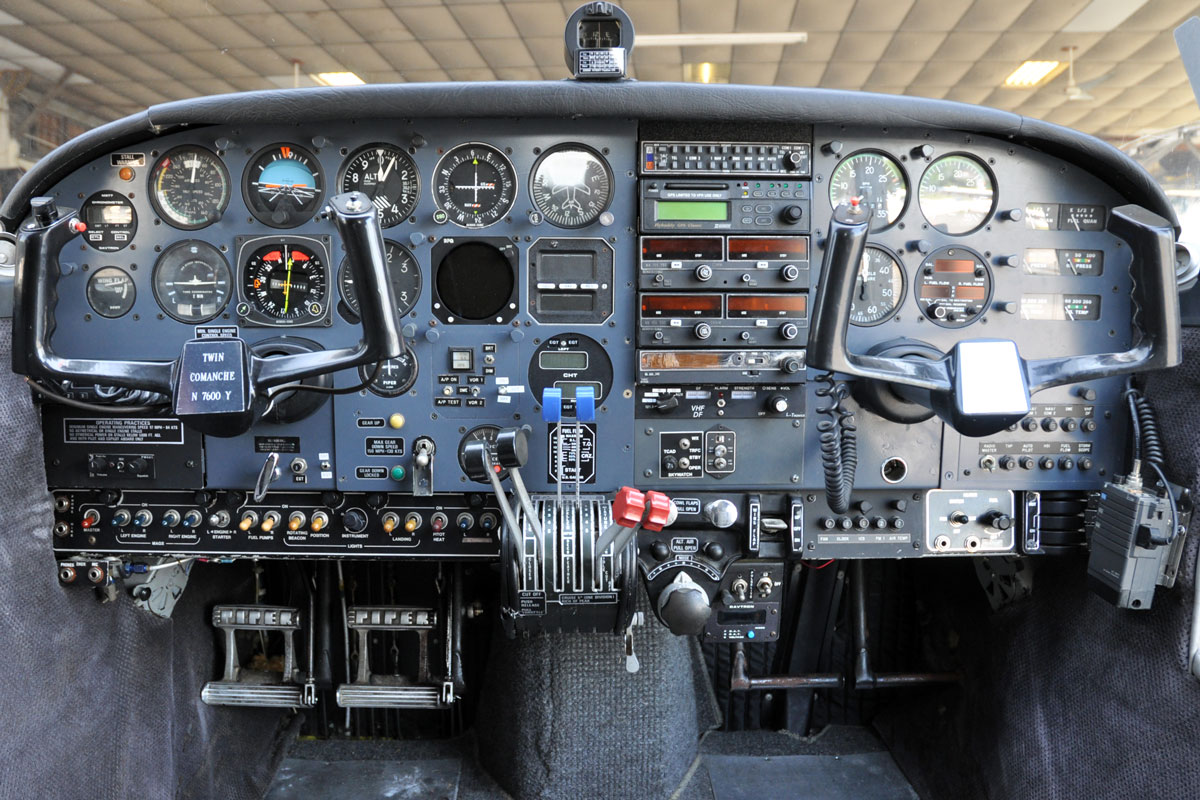

Avionics
|
|
| Make / Model | |
| NAV/COM #1: | King KX 155 w/ Glideslope |
| NAV/COM #2: | King KX 155 w/ Glideslope |
| Transponder: | Garmin GTX 327 |
| HSI: |
King KCS 55A |
| Audio Panel: | King KMA 24 |
| Weather: |
BFG 1000+ Stormscope |
| Autopilot: | S-TEC |
| GPS: | Apollo Flybuddy |
| DME: | King KN-62A |
| Fuel Flow: | Shadin Digital Fuel Flow (linked to GPS) |
| OAT / Volt Meter: | Davtron M303 |
| Other: | 2nd DG, True air-speed indicator |
|
Exterior
|
|
| Color(s): | White with gray and burgandy trim |
| Paint Condition: (1 to 10, 10 being the highest) |
6 |
|

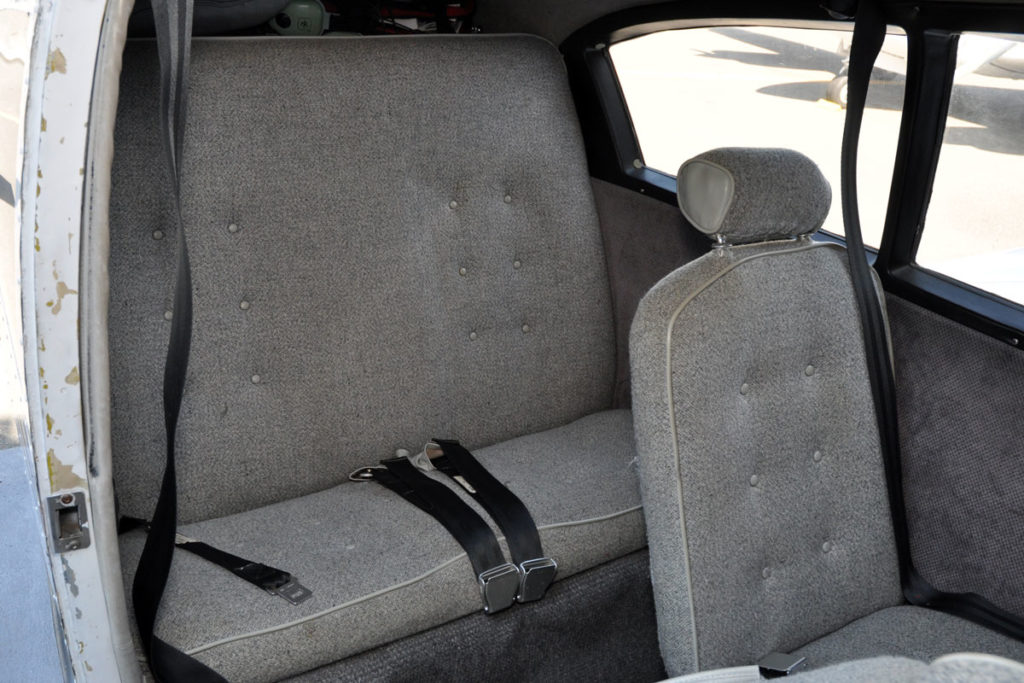

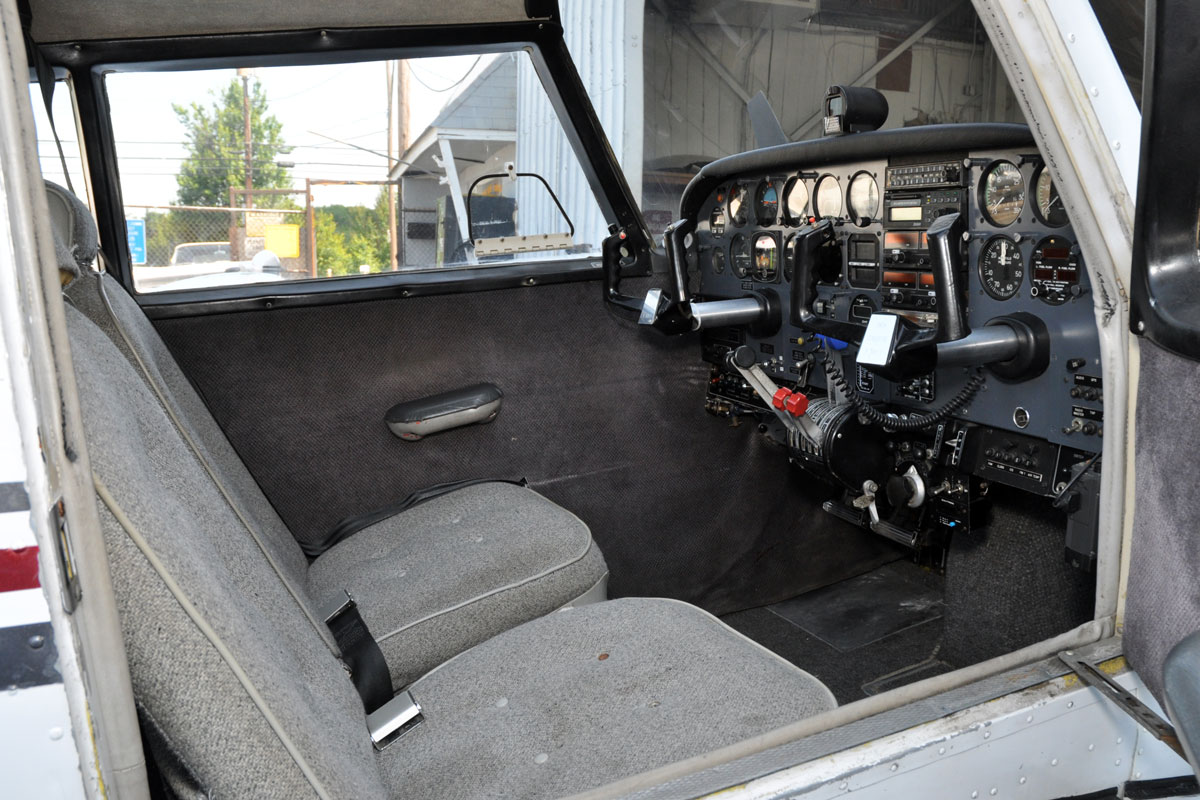

Interior
|
|
| Color(s): | Gray |
| Fabric: | Cloth |
| Condition: (1 to 10, 10 being the highest) |
5 |
| Glass condition: | Very Good |
| Other: | |
|
Performance
|
|||
| Cruise Speed: | 165 -170 kts (true btw 6000 – 8000 feet) | ||
| Useful Load: (remaining after full fuel) | 810 lbs (1350 without fuel) | ||
| Fuel Capacity: | 90 gal | ||
| Fuel burn: (average) | 15.5 – 17 GPH * (approx 8 gallons each) | ||
| Range (IFR): | 770 nm * | ||
| Specific Range: ((Efficiency = Cruise Speed ÷ Lbs per hour of fuel burn) (The higher the number, the better the efficiency)) | 1.72 | ||
| * Note: Performance figures are estimates based on best available information and may vary depending on power settings, etc.. | |||
|
Comments
|
|
The Twin Comanche was developed from the single engine Comanche by Ed Swearingen who at the time operated a facility that specialized in the modification of production aircraft. The first Twin Comanche PA-30 was delivered in 1963 and over 2,000 were manufacturer through 1972. The big draw of all the Twin Comanches was the airplane’s ability to extract maximum speed from minimum horsepower and fuel consumption. The PA-30’s 160-hp, Lycoming IO-320-BlA engines produced cruise speeds of 165-170 knots while burning only 15.5-17 gph total (approximately 8 gallons each engine). The engines have TBOs of 2,000 hours and are highly regarded for their simplicity and durability. Twin-engine rate of climb is listed as 1,460 fpm and single-engine rate of climb is 260 fpm. Twin Comanches provide twin engine redundancy, speed, and payload at near a single engine entry price and operating cost. This Twin Comanche has been owned by the present owner since 1995 and it has been hangared almost all of that time. The current owner is a CFII/MEI and, if requested, can provide transition training for the buyer. |
|
Contact Us About This Aircraft
|
|
|
Please call Dave Mathiesen at 609.259.2400 |
